Pizzato
SKU:MK H12F46
MK H12F46
MK H12F46
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

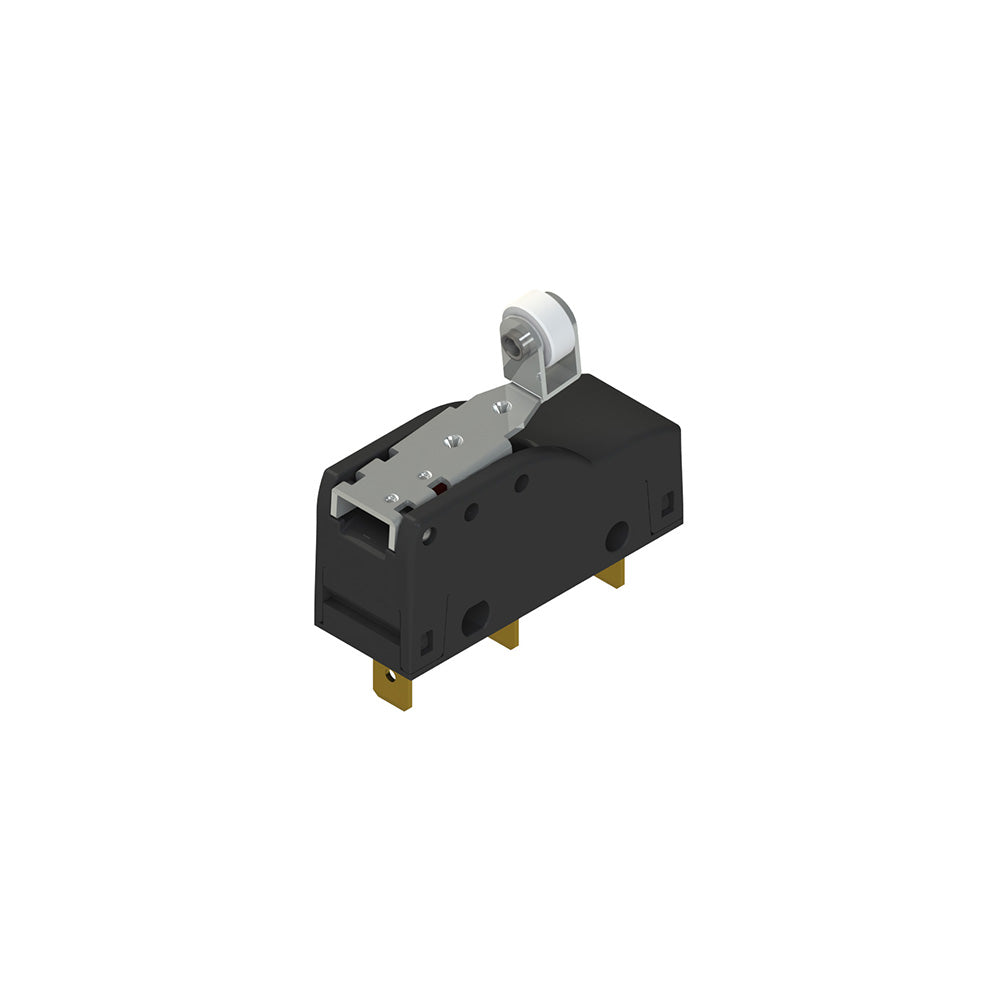

Microswitch with trasversal short roller lever, Ambient temperature: From -25 °C to +85 °C, Housing: Technopolymer housing, Terminal type: Vertical faston, Contact block: 1NO+1NC changeover, Maximum protection degree: IP00 without terminal cover; IP20 with terminal cover VF C01, VF C03; IP65 with terminal cover VF MKCx22 + MK Vx2xxx or VF MKCx23 + MK Hx2xxx, Actuation type: Back direct action, Actuator: With trasversal roller lever (l= 23.5mm), Positive opening: Yes.
Technical specifications
| Manufacturer part number | MK H12F46 |
|---|---|
| EAN | 8018851228162 |
| Minimum order quantity | 1 |
| Weight | 28 g |
| Customs tariff number | 85369095 |
| Product range | MK |
| ETIM class | EC000030 |
