Pizzato
SKU:FX 1455
FX 1455
FX 1455
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

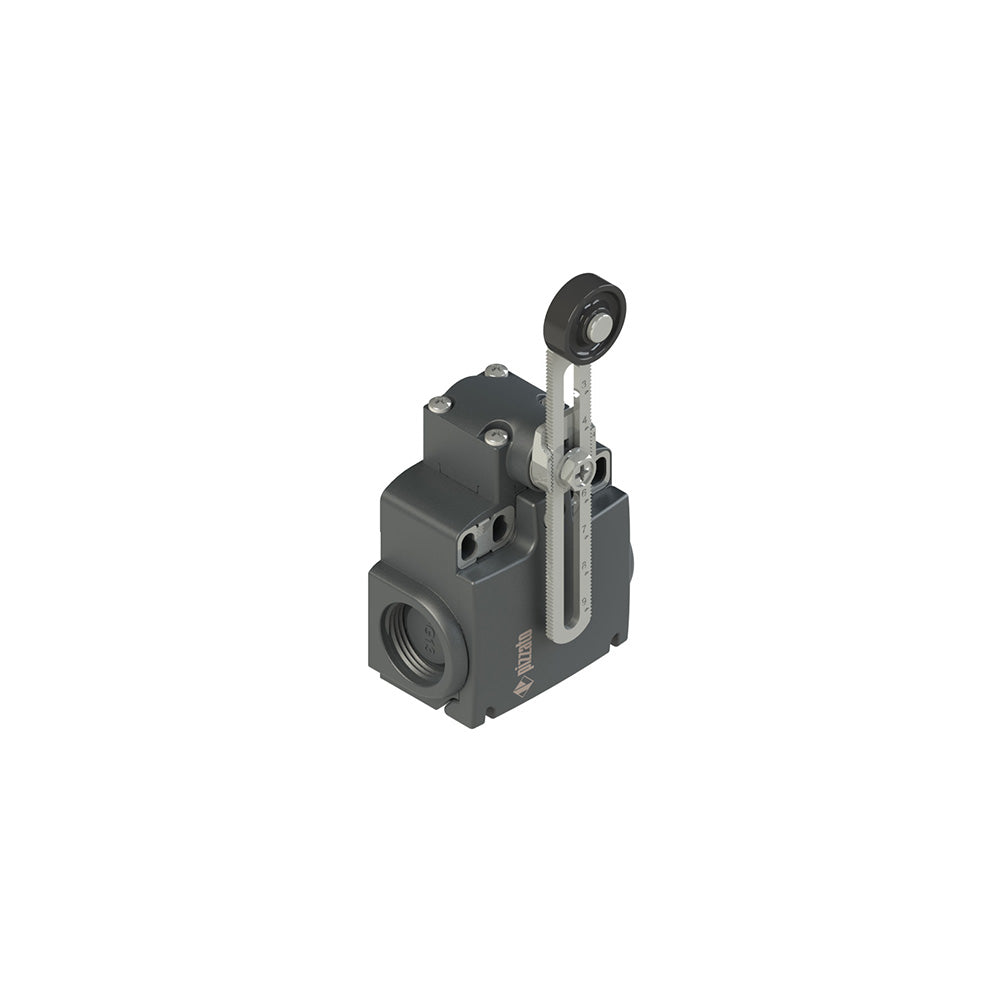

Position switch with adjustable lever and roller, Housing: Technopolymer housing, two knock-out threaded conduit entries PG 13,5 (FX series), Contact block: 2NC slow action, shifted contacts (B14), Head: Regular head for rotating levers , Actuator: With adjustable technopolymer roller lever, 20 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes, Positive opening: Yes (with lever adjusted to maximum length).
Technical specifications
| Manufacturer part number | FX 1455 |
|---|---|
| EAN | 8018851044342 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FX |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
