Pizzato
SKU:FS 2096D230

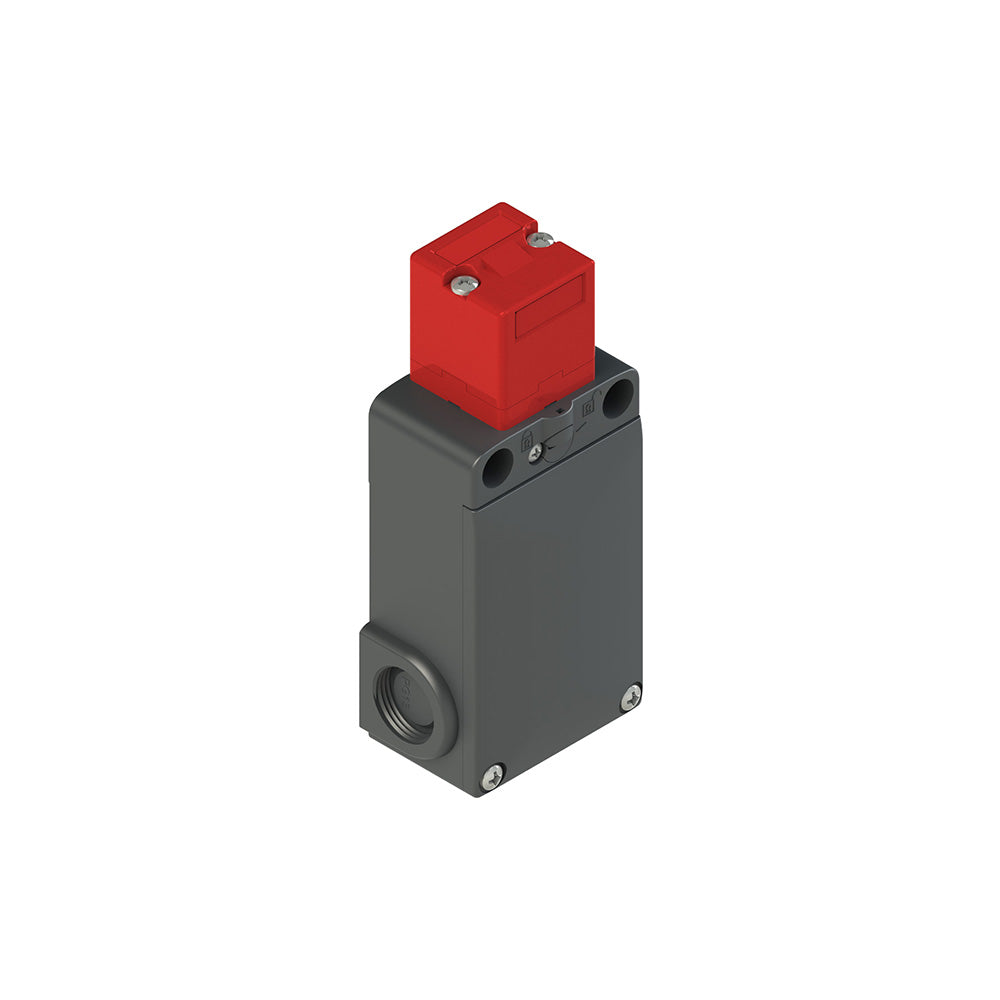

FS 2096D230
FS 2096D230
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden
FS series safety switch with separate actuator with lock, Protection degree: IP67 according to EN 60529, Power: 230 Vac, Housing: Technopolymer housing, three threaded PG 13,5 conduit entries, Contact block: 1NO+2NC moved by solenoid, Head: Rotating head, Working method: D working method, locked actuator with de-energized solenoid, Actuator: Without actuator , Positive opening: Yes.
Technical specifications
| Manufacturer part number | FS 2096D230 |
|---|---|
| EAN | 8018851079399 |
| Minimum order quantity | 1 |
| Weight | 411 g |
| Customs tariff number | 85369095 |
| Product range | FS switches with solenoid |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
