Pizzato
SKU:FR 950-M1
FR 950-M1
FR 950-M1
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

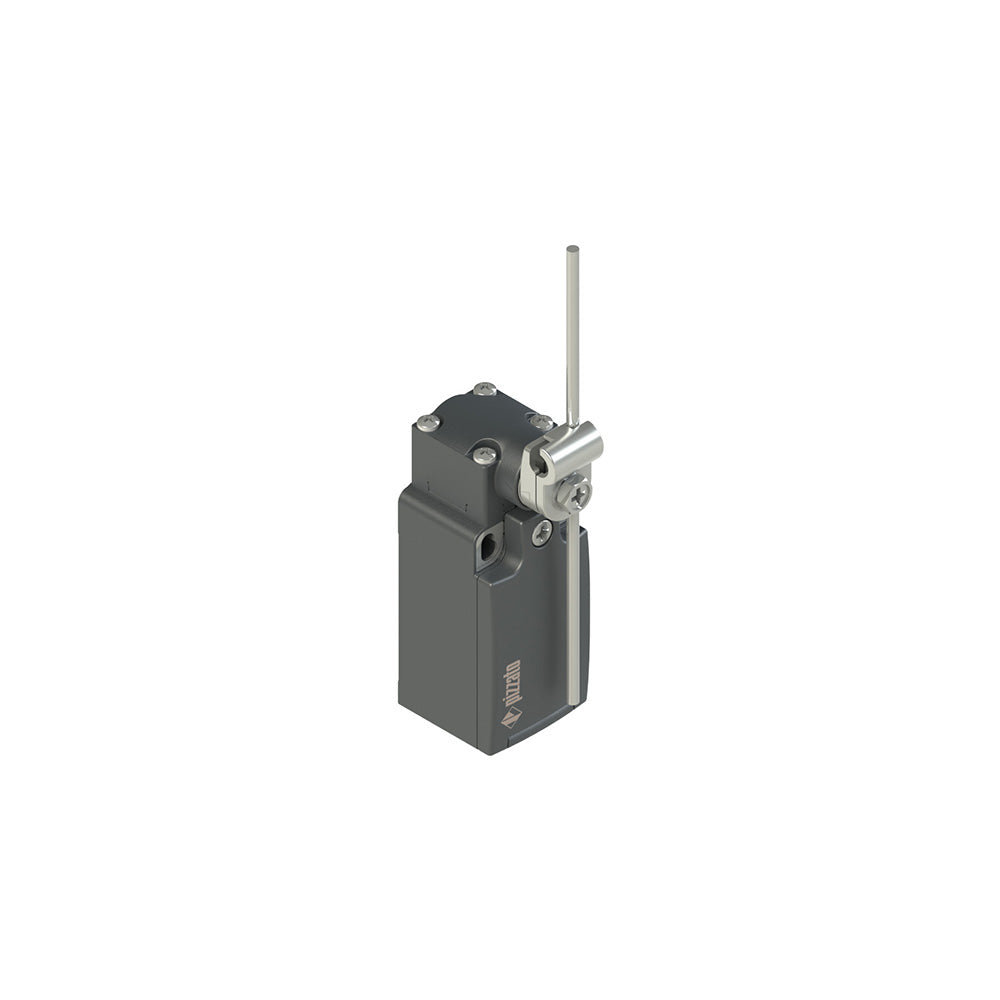

Position switch with adjustable round rod lever, Housing: Technopolymer housing, one threaded M16x1,5 conduit entry (FR series), Contact block: 2NC slow action (B9), Head: Regular head for rotating levers , Actuator: With adjustable round stainless steel rod lever, 3x125 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | FR 950-M1 |
|---|---|
| EAN | 8018851266256 |
| Minimum order quantity | 1 |
| Weight | 98 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
