Pizzato
SKU:FR 2055
FR 2055
FR 2055
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

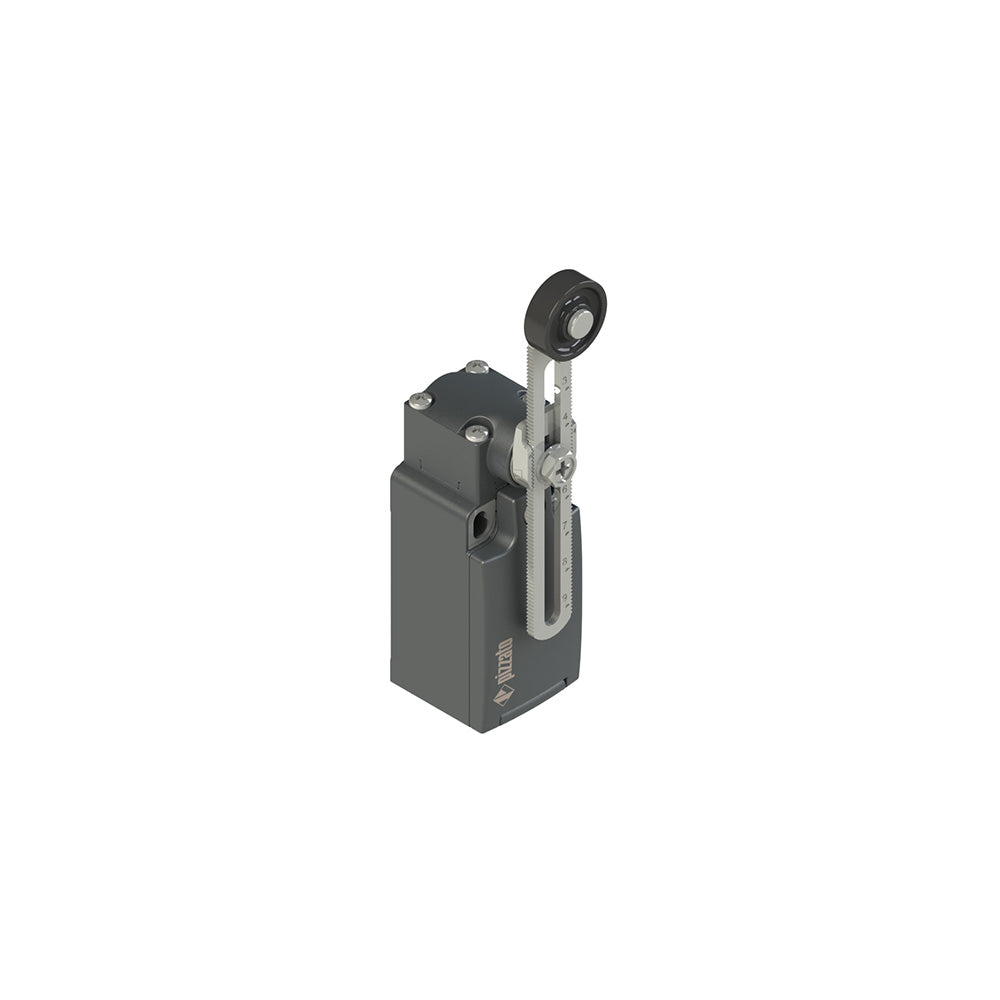

Position switch with adjustable lever and roller, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry (FR series), Contact block: 1NO+2NC slow action (B20), Head: Regular head for rotating levers , Actuator: With adjustable technopolymer roller lever, 20 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes (with lever adjusted to maximum length), Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 2055 |
|---|---|
| EAN | 8018851034428 |
| Minimum order quantity | 1 |
| Weight | 107 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
