Pizzato
SKU:FR 1156-R5
FR 1156-R5
FR 1156-R5
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

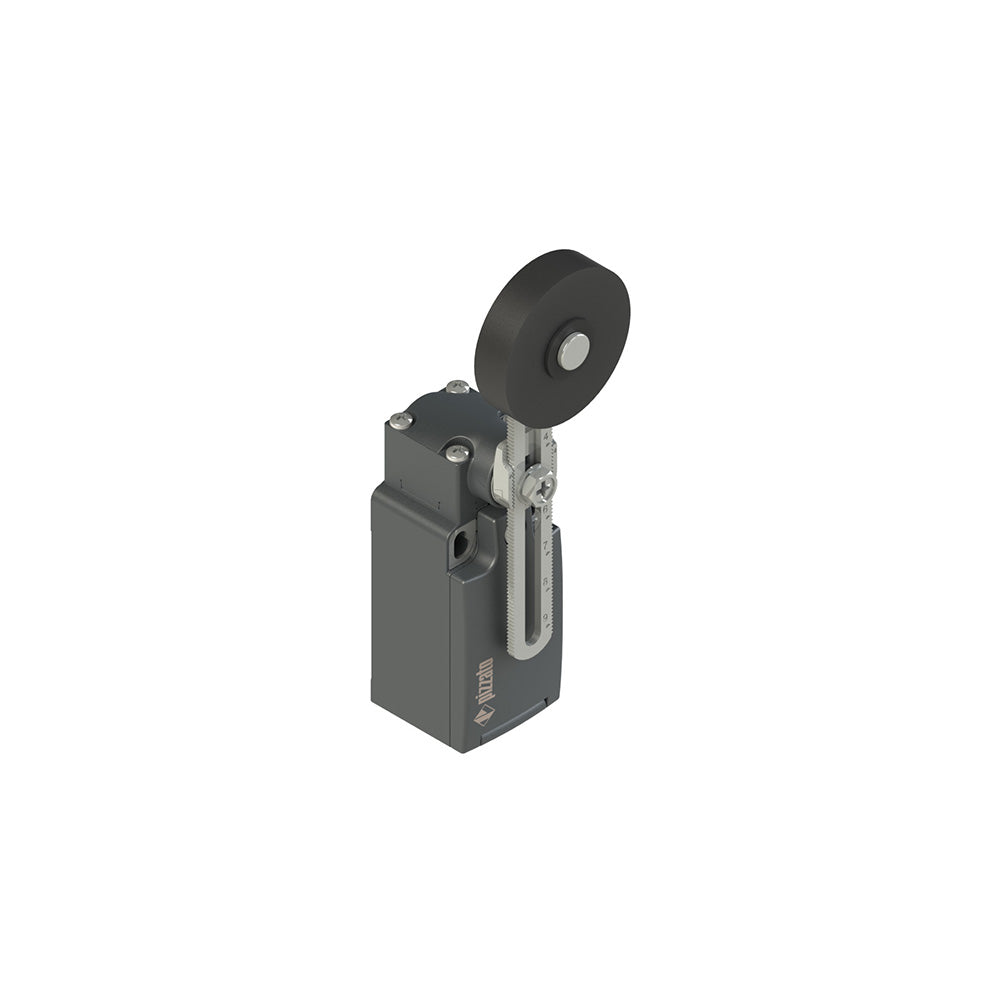

Position switch with adjustable roller lever, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry (FR series), Contact block: 2NC snap action (B11), Head: Regular head for rotating levers , Actuator: With adjustable rubber roller lever, 40 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 1156-R5 |
|---|---|
| EAN | 8018851173806 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | Lift sector switches |
| ETIM class | EC000030 |
