SALTEK
SKU:A07022
SLP-075 V/2
SLP-075 V/2
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.

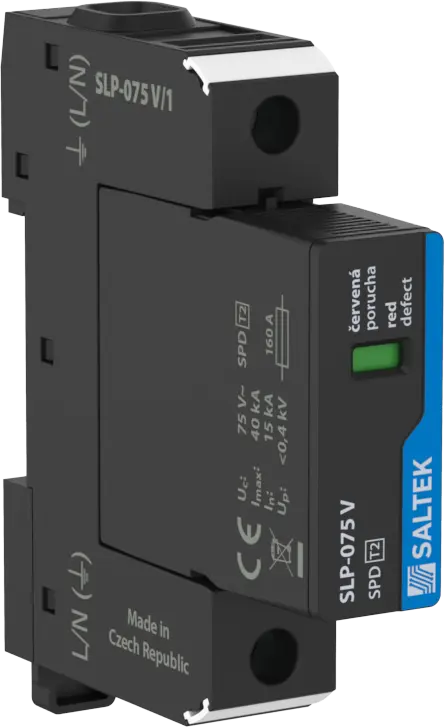

SALTEK SLP-075 V/2 — Pluggable module, visual fault signalling, varistor surge arrester, installation to LV installations, especially to sub-distribution boards, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A07022 |
|---|---|
| EAN | 8595090570226 |
| Nominal voltage | 60 V |
| Maximum operating voltage | 75 V AC |
| Maximum operating voltage (DC) | 100 V DC |
| Nominal discharge current | 15 kA |
| Voltage protection level | 0.4 kV |
| ETIM class | EC000941 |
| Net weight | 207 g |
| Packing dimensions | 124 × 82 × 43 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
