SALTEK
SKU:A03387

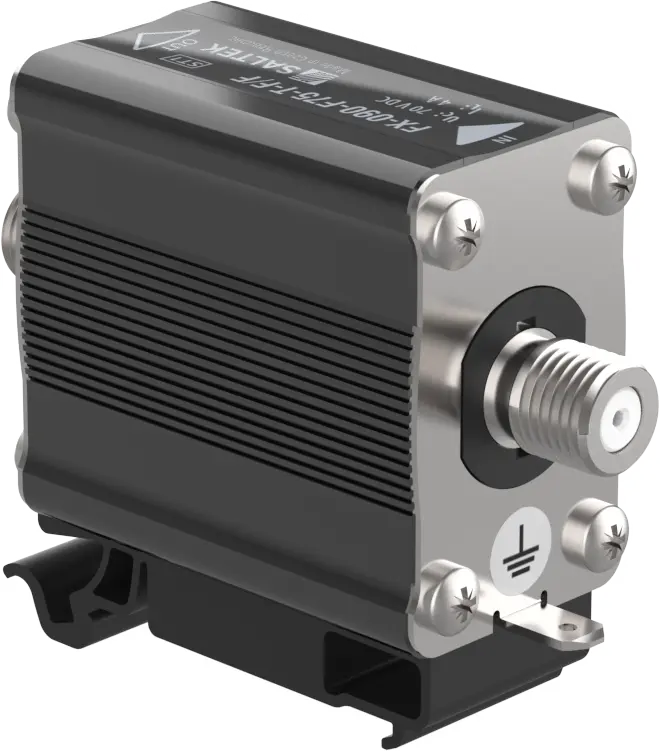

FX-090 F75 T F/F
FX-090 F75 T F/F
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
SALTEK FX-090 F75 T F/F — F connectors, 75 ohm, lightning current arrested with floating shielding (separated with GDT), installation at the boundary of LPZ 0 and LPZ 1 zones at the line entry into building, for protection of coaxial lines of TV and CCTV systems, suitable as the 1st level of surge for protection in coordination with the SX type, in the scope of delivery: universal plastic adapter for mounting on DIN rail and GND 2 holder.
Technical specifications
| SALTEK order number | A03387 |
|---|---|
| EAN | 8595090533870 |
| Nominal voltage | 70 V |
| Maximum operating voltage (DC) | 70 V DC |
| Nominal load current | 4 A |
| Frequency / bandwidth value | 2150 MHz |
| ETIM class | EC000943 |
| Net weight | 120 g |
| Packing dimensions | 95 × 70 × 40 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
