SALTEK
SKU:A06596
DMS-024T
DMS-024T

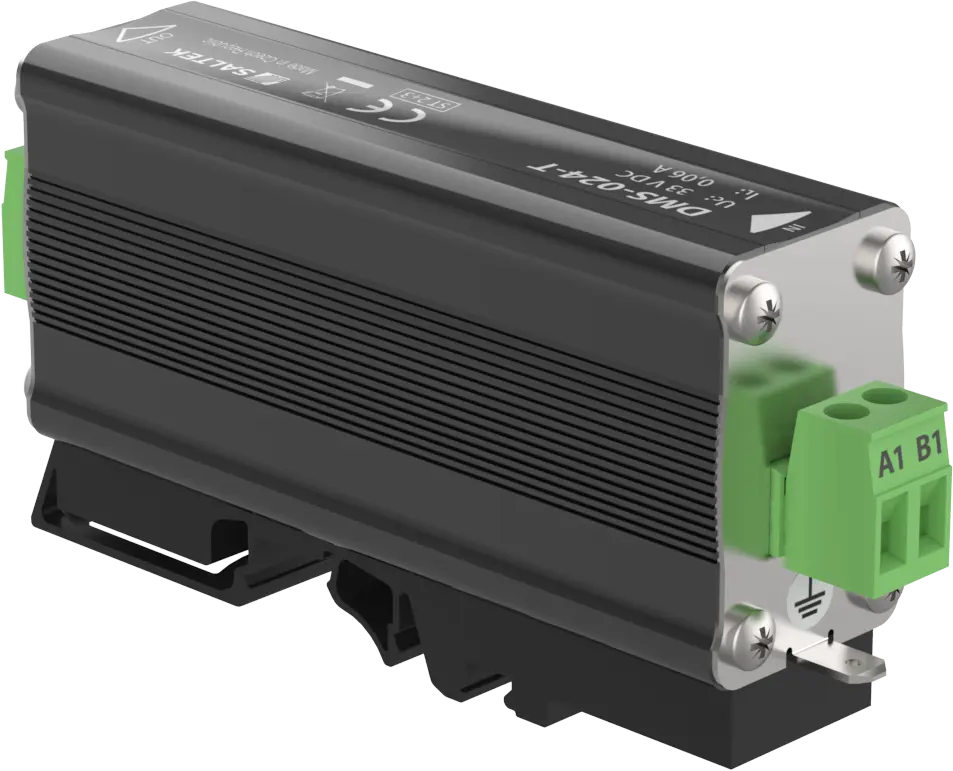

SALTEK DMS-024T — Coupling impedance (resistance), special two-stage surge protection of 2-core signalling line with current limiting, installation close to protected equipment, for protection of communication interfaces, mainly the measuring loops, of I<(>&<)>C, electronic security and fire detection systems, etc. against surge voltage where are long parallel lines with power network, coarse and fine surge protection in differential mode (core – core) and coarse surge protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A06596 |
|---|---|
| EAN | 8595090565963 |
| Nominal voltage | 24 V |
| Maximum operating voltage | 23 V AC |
| Maximum operating voltage (DC) | 33 V DC |
| Nominal load current | 0.06 A |
| Frequency / bandwidth value | 1.1 MHz |
| ETIM class | EC000943 |
| Net weight | 139 g |
| Packing dimensions | 120 × 80 × 35 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
