Relpol
SKU:RUC-2012-25-W048

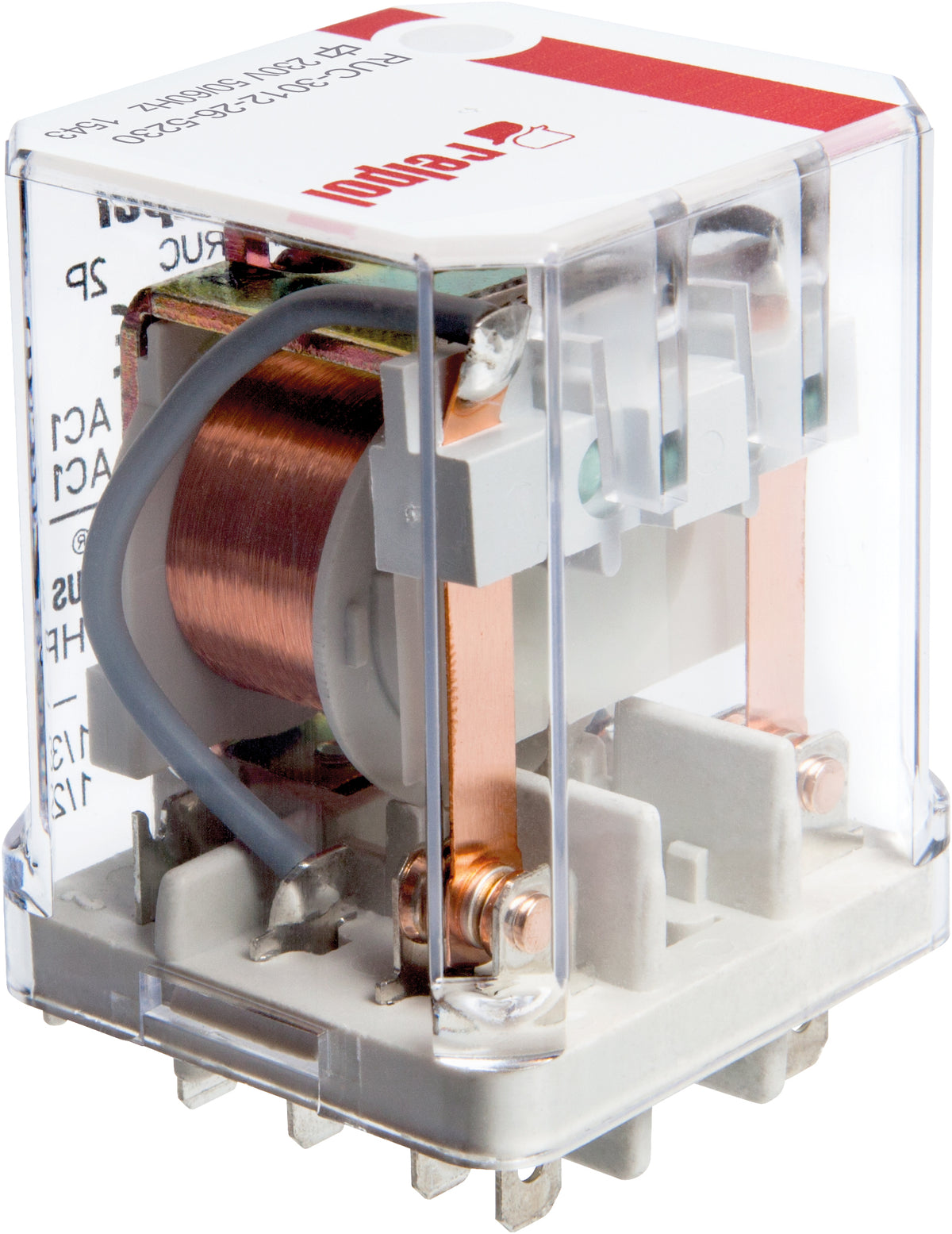

Relpol RUC-2012-25-W048 – Industrial Relays
Relpol RUC-2012-25-W048 – Industrial Relays
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
Industrial relays, RUC-2012-25-W048,2 CO ( DPDT), AgNi, 48V DC, Rated load AC1 16 A, Rated switching voltage 250V AC, Operating temperature °C -40…+70
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 48 V |
| Contact material | AgNi |
| Number and type of contacts | 2 CO |
| Rated load AC1 | 16 A/ 250 V AC |
| Rated load DC1 | 16 A/ 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for PCB |
| Depth | 36,1 |
| Width mm | 38,6 |
| Height mm | 56,5 |
| Weight kg | 0,08 |
| Relay type | Relay RUC |
| Ip cover | IP 00 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
