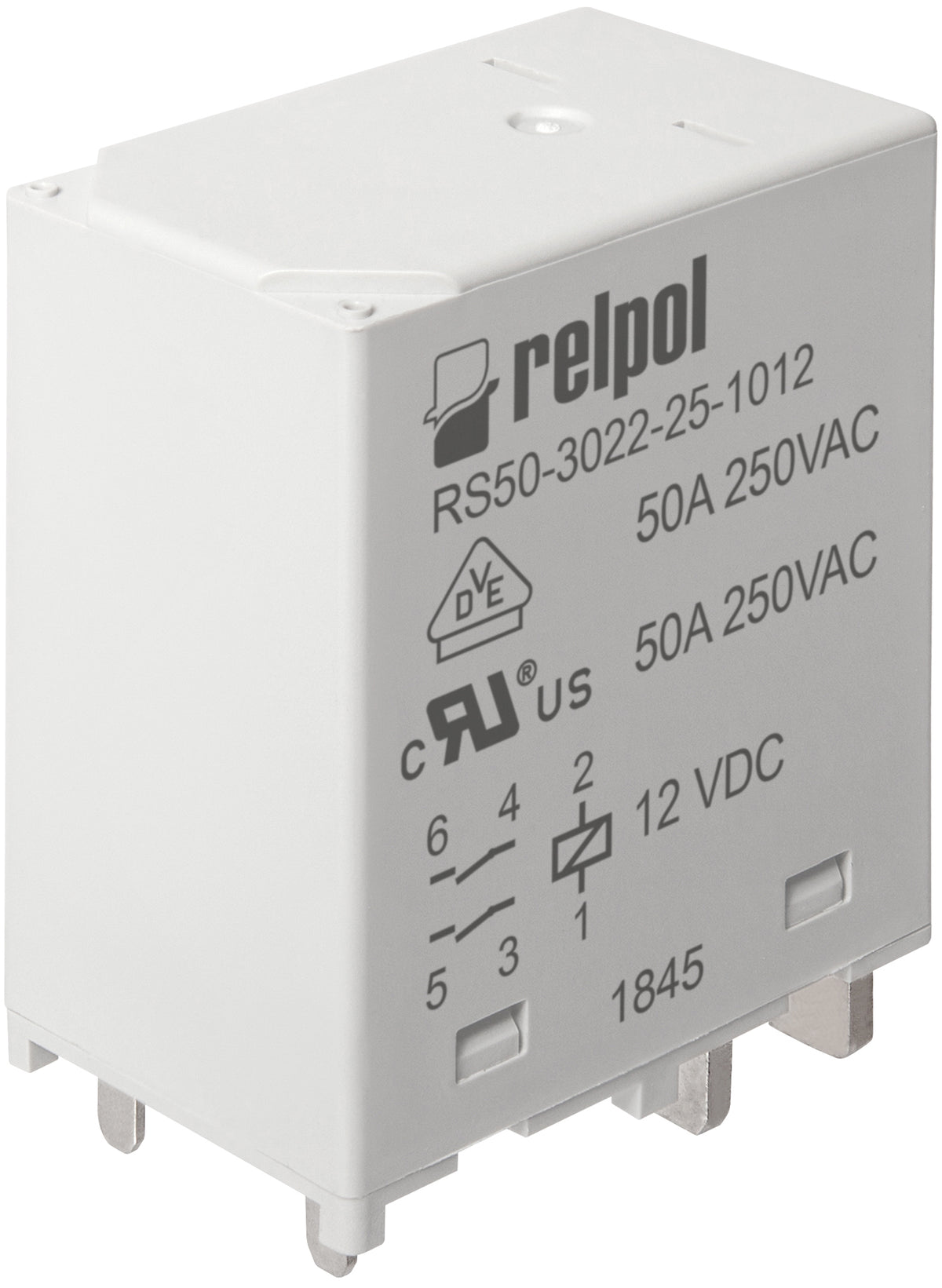

Relpol RS50-3022-25-1009 – High Power Relays

Name: Relpol RS50-3022-25-1009 – High Power Relays
Brand: Relpol
SKU: RS50-3022-25-1009
Availability: InStock

Price on request

Wyprzedane

Koszt wysyłki obliczony przy realizacji zakupu.

Request a price

Relay for solar inverters and high current applications - 2 NO contacts - continuous current capacity of the contact: 50 A. Coil 9 V DC. Rated load current in category AC1: 50 A / 250 V AC, DC: 50 A / 24 V DC. Maximum contact voltage: 440 V AC. Minimum contact current: 10 mA. Contact gap ≥ 1.85 mm. Maximum switching power in category AC1: 12,500 VA. For printed circuits

Technical specifications

Type of coil supply	DC
Coil voltage	9 V
Contact material	AgSnO2
Number and type of contacts	2 NO
Rated load AC1	50 A / 250 V AC
Rated load DC1	50 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	for PCB
Depth	40
Width mm	25
Height mm	49,2
Weight kg	0,105
ETIM class	EC001437
Relay type	RS50
Ip cover	IP 40
