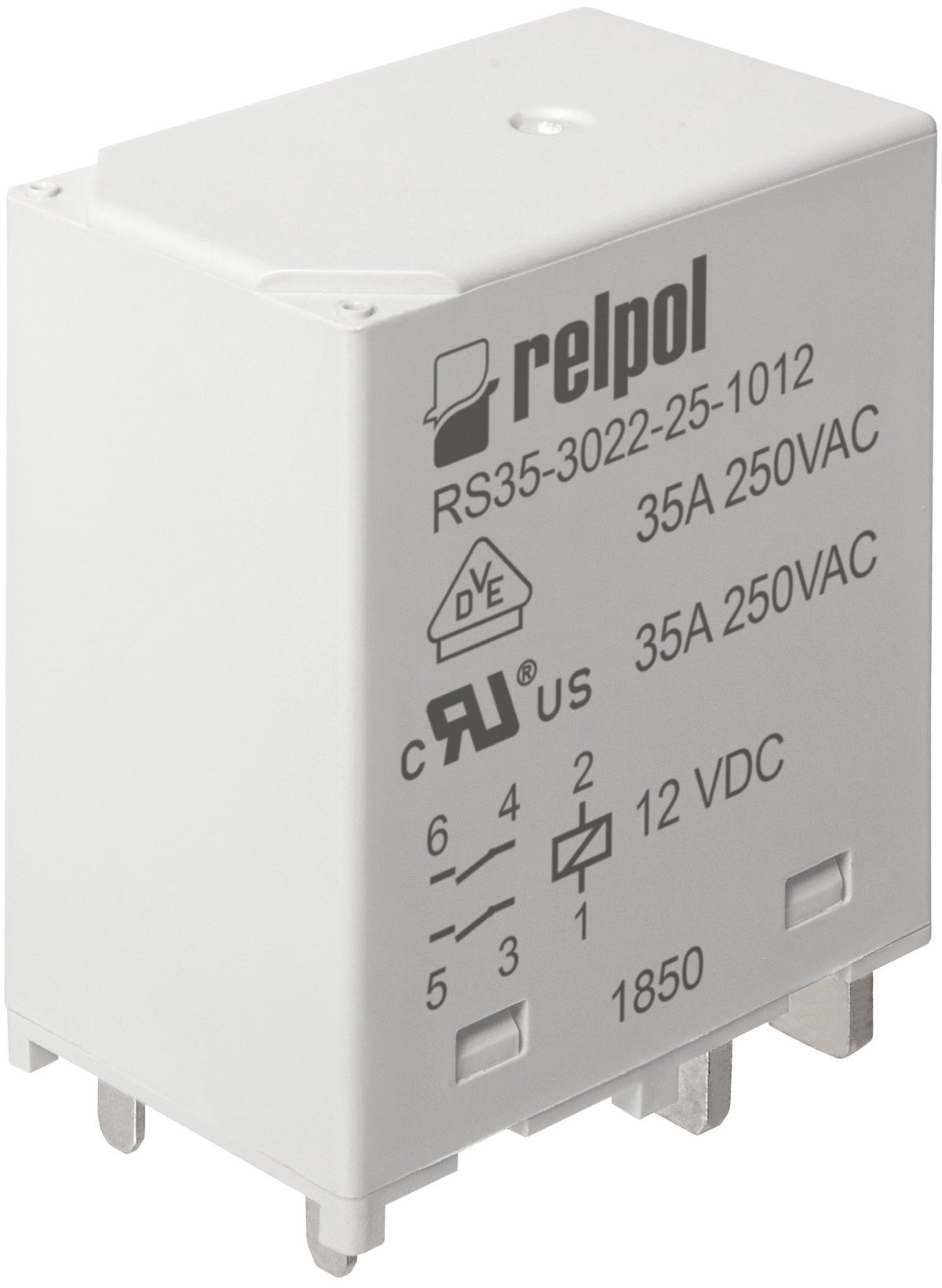

Relpol RS35-3022-25-1012 – High Power Relays

Name: Relpol RS35-3022-25-1012 – High Power Relays
Brand: Relpol
SKU: RS35-3022-25-1012
Availability: InStock

Price on request

Wyprzedane

Koszt wysyłki obliczony przy realizacji zakupu.

Request a price

Relay for solar inverters and high current applications - 2 NO contacts - continuous current capacity of the contact: 35 A. Coil 12 V DC. Rated load current in category AC1: 35 A / 250 V AC, DC: 35 A / 24 V DC. Maximum contact voltage: 440 V AC. Minimum contact current: 10 mA. Contact gap ≥ 2.2 mm. Maximum switching power in category AC1: 8,750 VA. For printed circuits.

Technical specifications

Type of coil supply	DC
Coil voltage	12 V
Contact material	AgSnO2
Number and type of contacts	2 NO
Rated load AC1	35 A / 250 V AC
Rated load DC1	35 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	for PCB
Depth	40
Width mm	25
Height mm	49,2
Weight kg	0,105
ETIM class	EC001437
Relay type	RS35
Ip cover	IP 40
