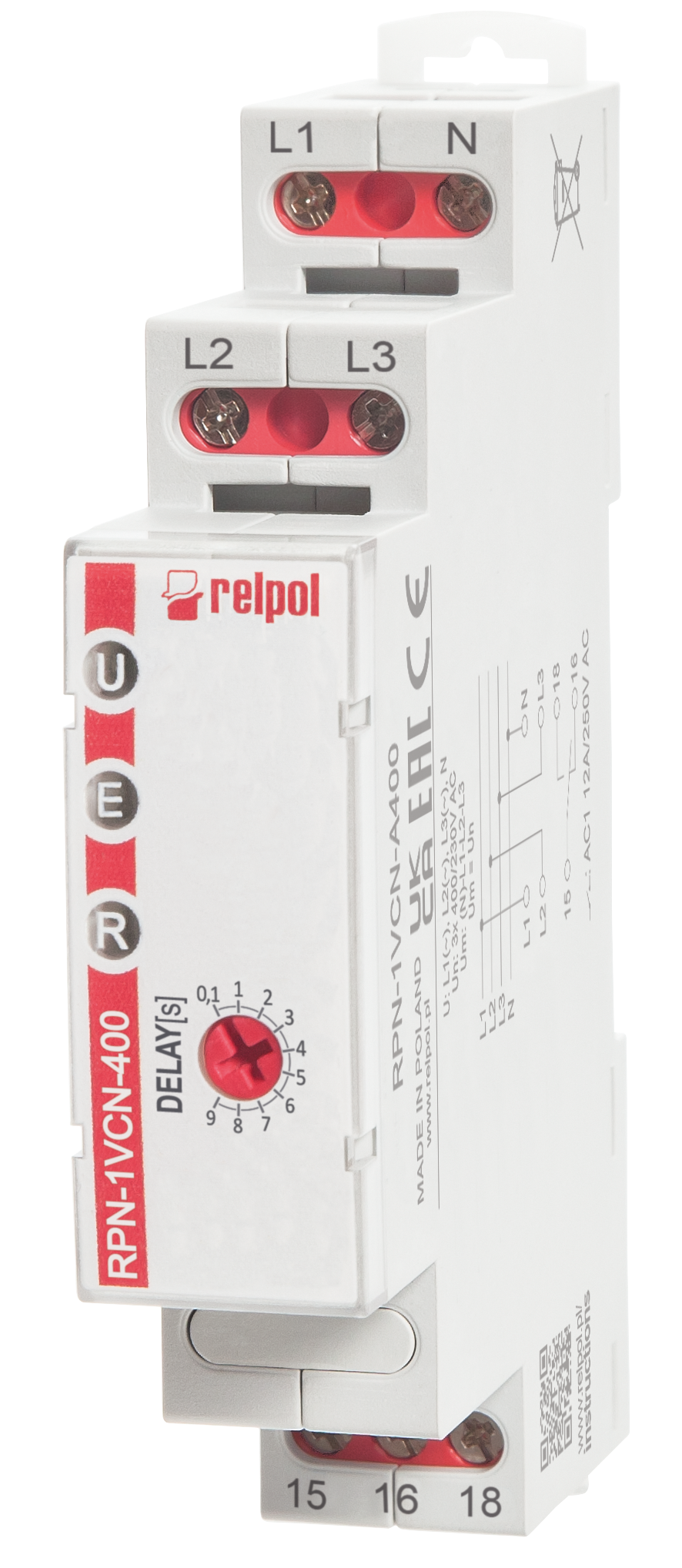

Relpol RPN-1VCN-A400 – Monitoring Relays
Relpol RPN-1VCN-A400 – Monitoring Relays
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
Multifunction monitoring relays (monitoring of AC voltage in a three-phase network – 3\~ 400 V or 3(N)\~ 400/230 V).1 changeover contact. Monitoring of threshold exceedance Umin/Umax, phase loss, and phase sequence. Hysteresis function. Adjustable switch-off delay time. Supply voltage AC = monitored voltage. With neutral wire. Fixed switching thresholds.
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 400 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 12 A / 250 V AC |
| Rated load DC1 | 12 A / 24 V DC |
| Mounting | mounting on 35 mm rail |
| Depth | 90 |
| Width mm | 17,5 |
| Height mm | 64,6 |
| Weight kg | 0,0718 |
| ETIM class | EC001440 |
| Relay type | RPN |
| Ip cover | IP 20 |
