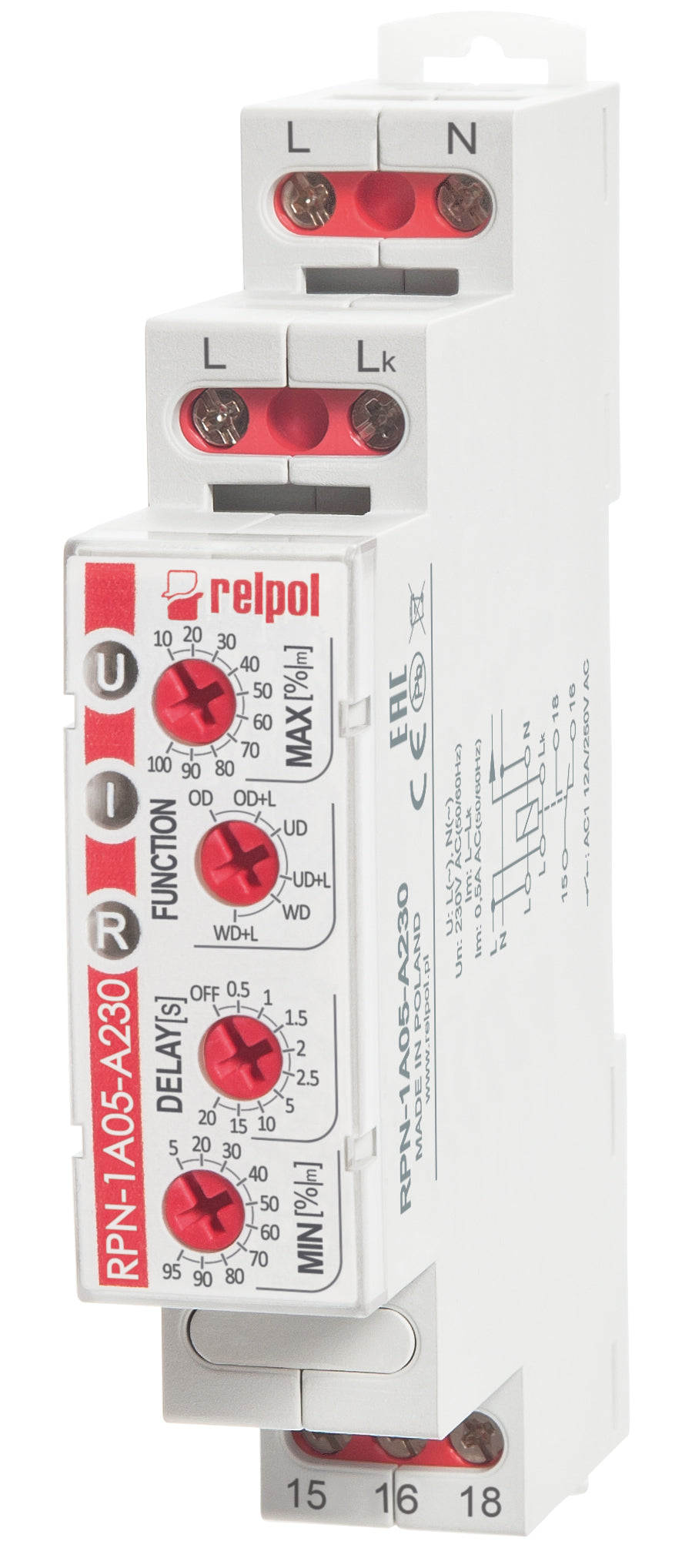

Relpol RPN-1A05-A230 – Monitoring Relays

Name: Relpol RPN-1A05-A230 – Monitoring Relays
Brand: Relpol
SKU: RPN-1A05-A230
Availability: InStock

Price on request

Wyprzedane

Koszt wysyłki obliczony przy realizacji zakupu.

Request a price

Multifunctions monitoring relay, AC current monitoring in 1-phase network, with adjustable thresholds; 1 CO; 230 V AC; Rated load: AC1 12 A/ 250 V AC, DC1 12A / 24 V DC; Rated input voltage 50/60 Hz: 230 V

Technical specifications

Type of coil supply	AC
Coil voltage	230 V
Contact material	AgSnO2
Number and type of contacts	1 CO
Rated load AC1	12 A / 250 V AC
Rated load DC1	12 A / 24 V DC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,6
Weight kg	0,072
ETIM class	EC001440
Relay type	RPN
Ip cover	IP 20
