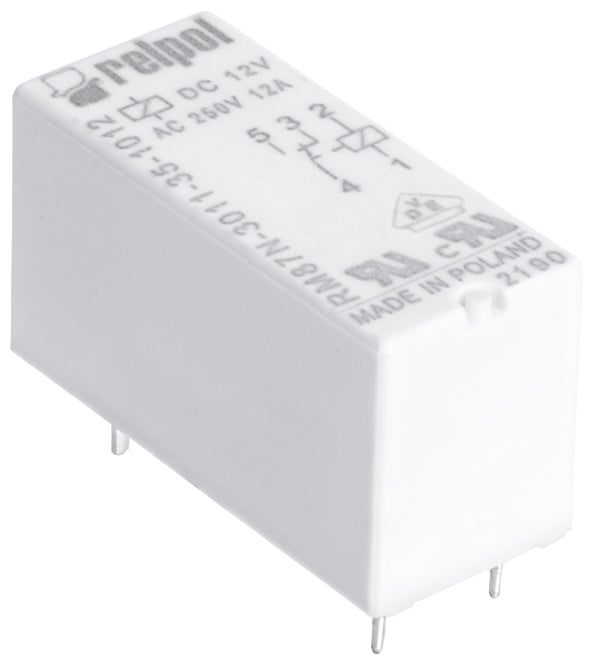

Relpol RM87N-3011-35-1024 – Industrial Relays

Name: Relpol RM87N-3011-35-1024 – Industrial Relays
Brand: Relpol
SKU: RM87N-3011-35-1024
Availability: InStock

Price on request

Wyprzedane

Koszt wysyłki obliczony przy realizacji zakupu.

Request a price

Miniature relays RM87N-3011-35-1024, 1 CO. Contact material: AgSnO2. Voltage coil 24 V DC. Rated load AC1 12 A / 250 V AC. Mounting: for PCB and sockets. Cover protection category IP 67. Raster 3,5 mm

Technical specifications

Type of coil supply	DC
Coil voltage	24 V
Contact material	AgSnO2
Number and type of contacts	1 CO
Rated load AC1	12 A / 250 V AC
Rated load AC3	0,5 kW
Rated load DC1	12 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	for PCB and sockets
Depth	29
Width mm	12,7
Height mm	15,7
Weight kg	0,014
ETIM class	EC001437
Relay type	RM87
Ip cover	IP 67
