Relpol
SKU:RM12N-2021-25-1024
Relpol RM12N-2021-25-1024 – Industrial Relays
Relpol RM12N-2021-25-1024 – Industrial Relays
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.

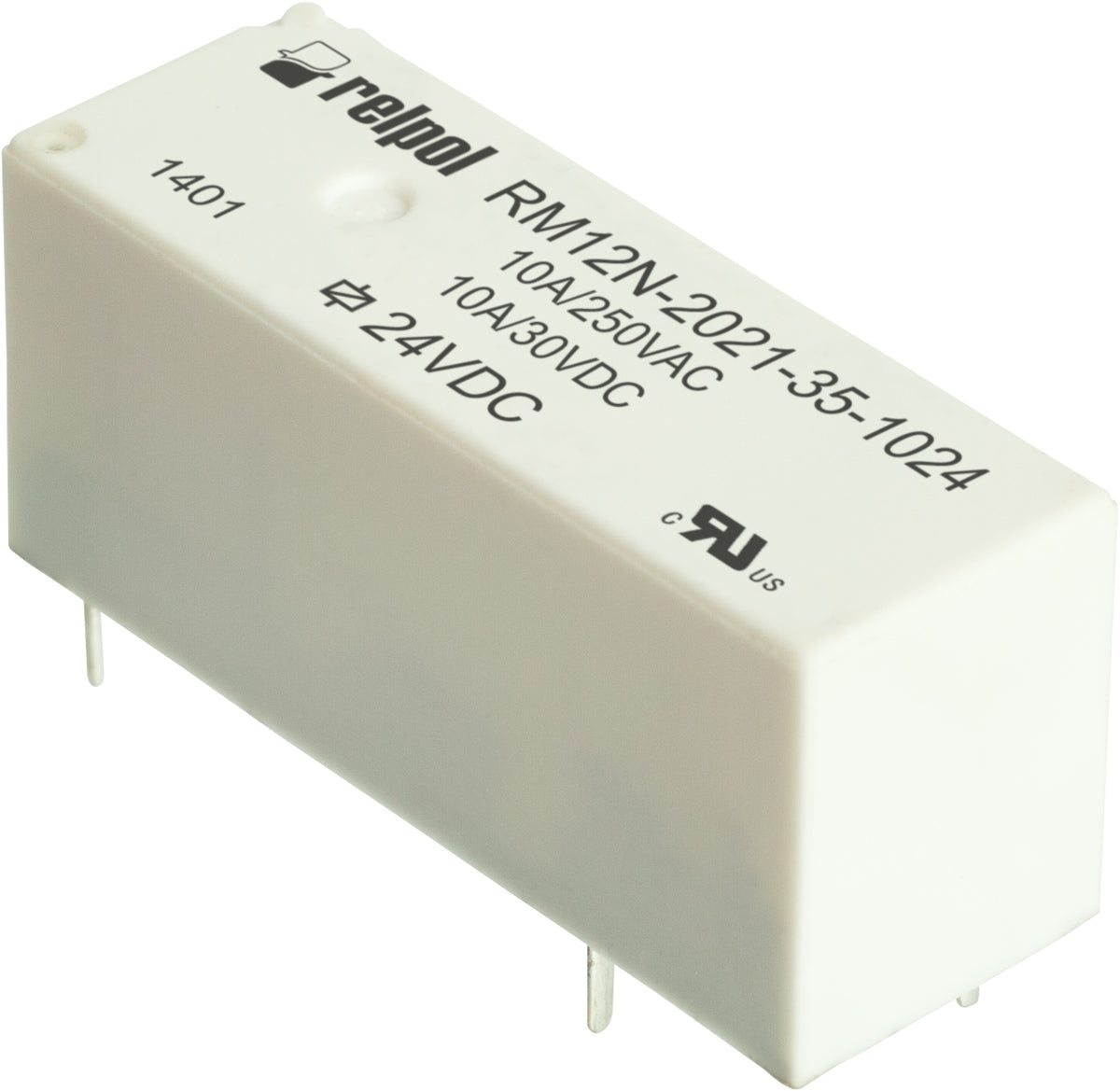

Miniature relays RM12N-2021-25-1024, 1 NO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 10 A / 250 V AC. Mounting: for PCB. Cover protection category IP 40.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgNi |
| Number and type of contacts | 1 NO |
| Rated load AC1 | 10 A / 250 V AC |
| Rated load DC1 | 10 A / 30 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for PCB |
| Depth | 28,5 |
| Width mm | 10,1 |
| Height mm | 12,5 |
| Weight kg | 0,008 |
| ETIM class | EC001437 |
| Relay type | RM12N |
| Ip cover | IP 40 |
