Relpol
SKU:R40N-3021-25-5024

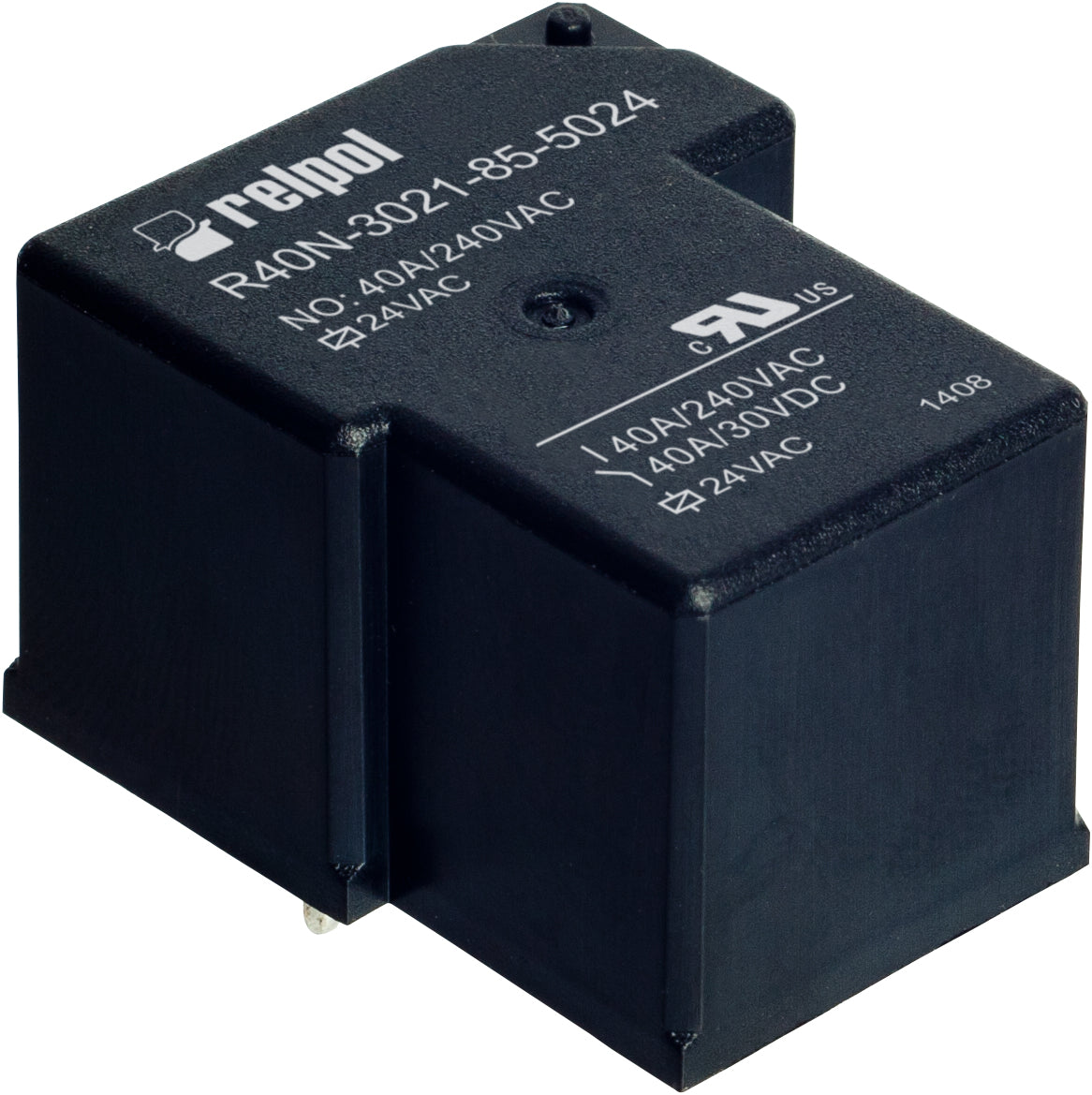

Relpol R40N-3021-25-5024 – High Power Relays
Relpol R40N-3021-25-5024 – High Power Relays
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
High power Relays R40N-3021-25-5024, 1 NO. Contact material: AgSnO2. Voltage coil 24 V AC. Rated load AC1 40 A / 240 V AC. Mounting: for PCB. Cover protection category IP 64.
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 NO |
| Rated load AC1 | 40 A / 240 V AC |
| Rated load AC3 | 1,5 kW |
| Rated load DC1 | 40 A / 30 V DC |
| Rated switching voltage | 240 V AC |
| Mounting | for PCB |
| Depth | 32,5 |
| Width mm | 27,6 |
| Height mm | 20,5 |
| Weight kg | 0,03 |
| ETIM class | EC001437 |
| Relay type | R40N |
| Ip cover | IP 64 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
