Relpol PZ11 – Relay Sockets & Bases

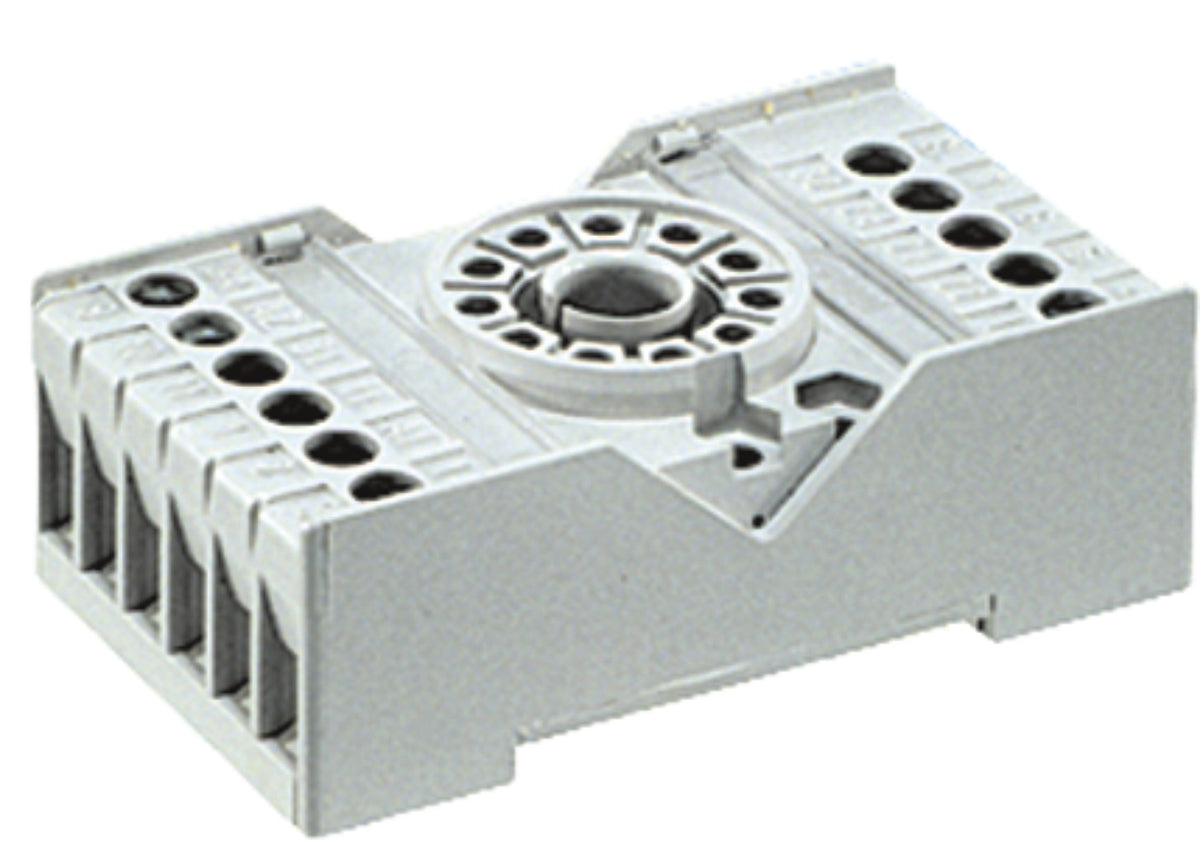

Plug socket, for R15 3P relay - gray color, width 38 mm. No circuit separation. Input / coil - terminals: (+)A1(2) - (-)A2(10). Output / contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9). Track load capacity: 10 A / 250 V AC. Dimensions: 68.2 x 38 x 24.2 mm. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Set dimensions: PZ11 socket + R15 3P relay + PZ11 0031 clamp: 68.2 x 38 x 82.6 mm. Note: a spring clamp type PZ11 0031 must be ordered separately for the socket (it increases the height of the socket + relay set by approximately 4 mm). Set - IP 20.

Technical specifications
