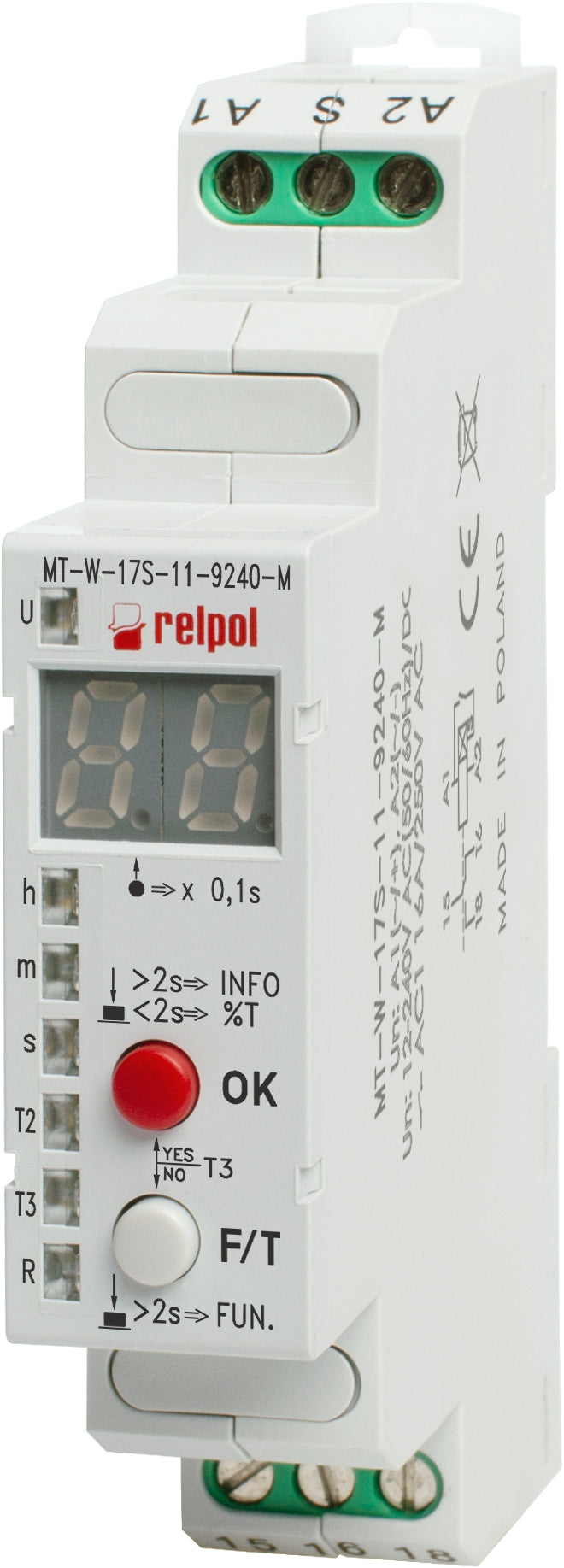

Relpol MT-W-17S-11-9240-M – Time Relays

Name: Relpol MT-W-17S-11-9240-M – Time Relays
Brand: Relpol
SKU: MT-W-17S-11-9240-M
Availability: InStock

Price on request

Wyprzedane

Koszt wysyłki obliczony przy realizacji zakupu.

Request a price

Time relays , MT-W-17S-11-9240-M, Universal, multifunction time relays with independently controled times T1, T2 and T3 (25 time functions + functions ON and OFF; quick times set with the accuracy of 0,1 s) . 1 CO ( SPDT), AgSnO2, 12...240V AC/DC, Rated load AC1 10 A, Rated load AC3 , Rated switching voltage 250 V AC, Operating temperature °C -20…+50, mounting on 35 mm rail

Technical specifications

Type of coil supply	AC/DC
Coil voltage	12...240 V
Contact material	AgSnO4
Number and type of contacts	1 CO
Rated load AC1	10 A / 250 V AC
Rated load DC1	10 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	65
Weight kg	0,07
ETIM class	EC001439
Relay type	MT
Ip cover	IP 20
Time ranges	0,1 s ... 99 h 59 min. 59,9 s
