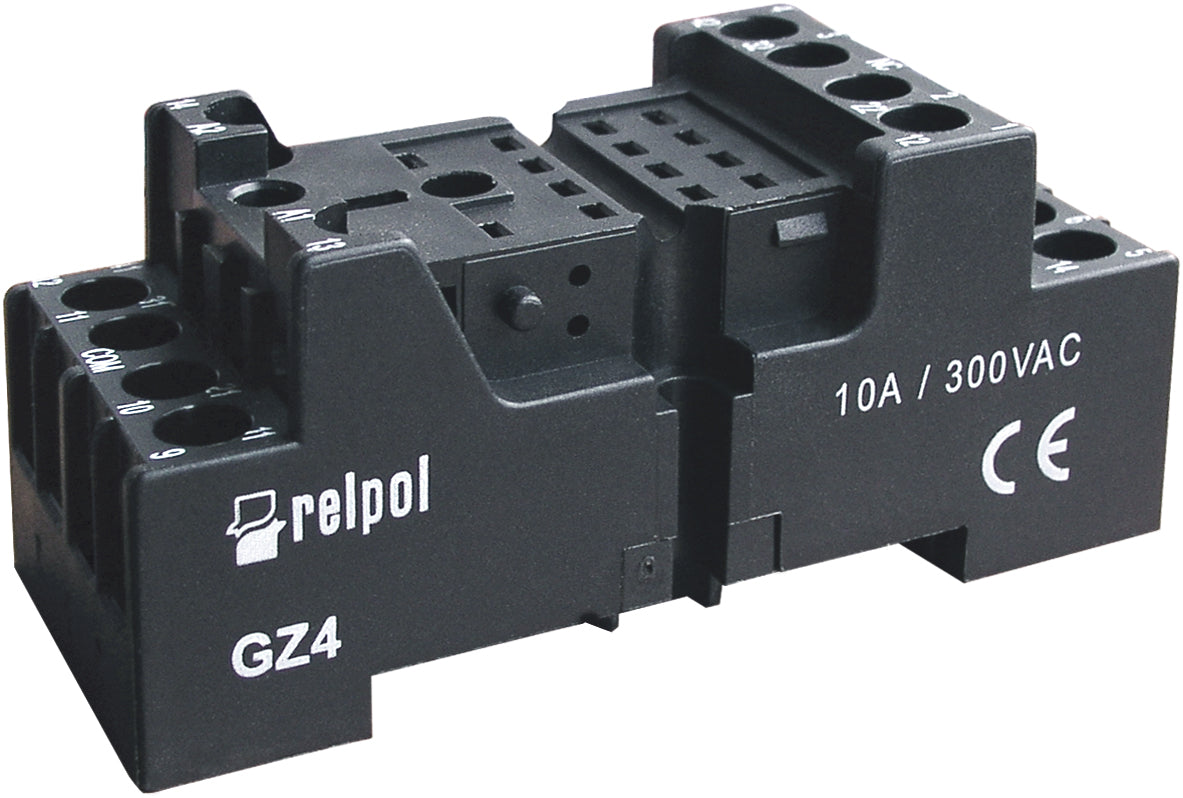

Relpol GZ4 – Relay Sockets & Bases

Plug socket, for R4N relay, black, width 29.5 mm. No circuit separation. Input / coil - terminals: (+)A1(13) - (-)A2(14). Output / contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8). Track load capacity: 10 A / 300 V AC. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Dimensions: 66.8 x 29.5 x 29 mm. Note: the G4 1052 spring clip must be ordered separately for the socket, it increases the height of the GZ4 + R4N set by approximately 4 mm. IP 20. Dimensions of the set: R4 relay + GZ4 socket + G4 1052 clamp: 66.8 x 29.5 x 68.6 mm. Set - IP 20.

Technical specifications
