Pizzato
SKU:MK G12D35
MK G12D35
MK G12D35
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

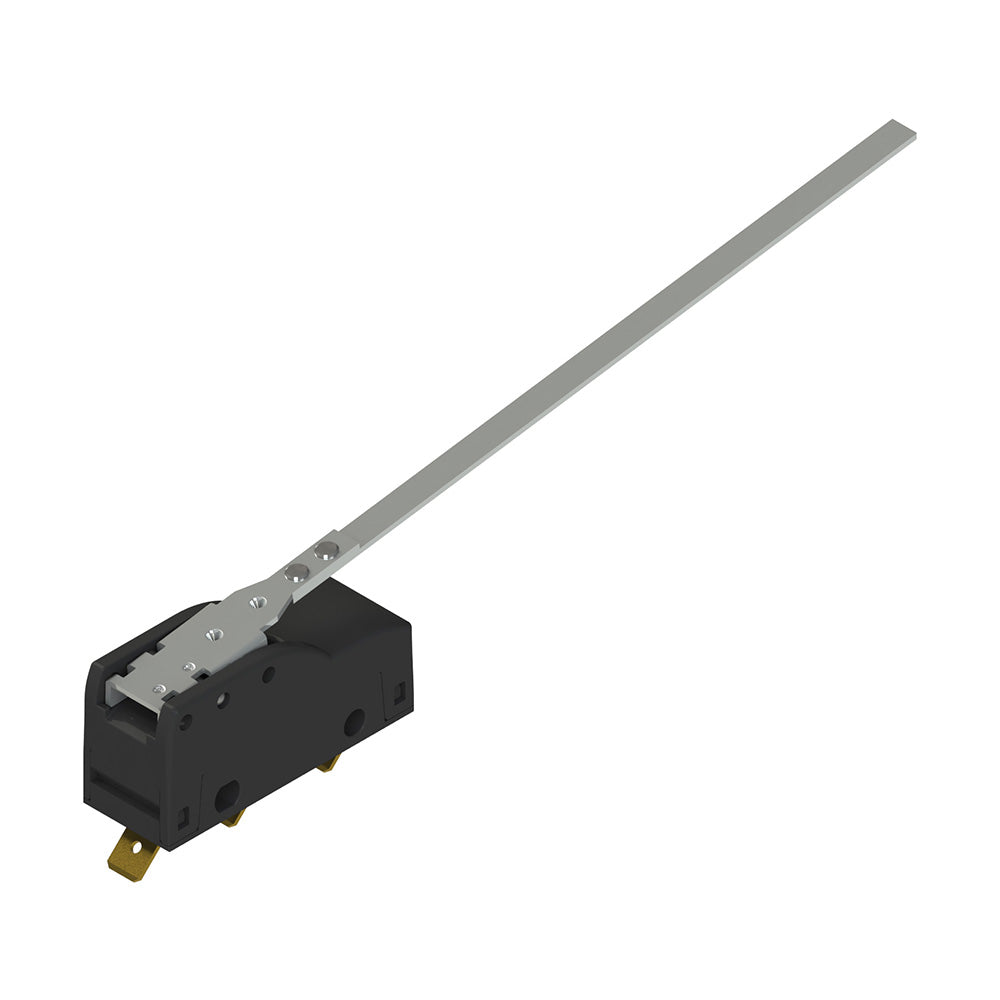

Microswitch with long lever, Ambient temperature: From -25 °C to +85 °C, Housing: Technopolymer housing, Contact block: 1NO+1NC changeover, Maximum protection degree: IP00 without terminal cover; IP20 with terminal cover VF C01, VF C03; IP65 with terminal cover VF MKCx22 + MK Vx2xxx or VF MKCx23 + MK Hx2xxx, Actuation type: Direct action, Actuator: With long lever (l= 150mm).
Technical specifications
| Manufacturer part number | MK G12D35 |
|---|---|
| EAN | 8018851490637 |
| Minimum order quantity | 1 |
| Weight | 31 g |
| Customs tariff number | 85369095 |
| Product range | MK |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
