Pizzato
SKU:HP AB053C-KAM
HP AB053C-KAM
HP AB053C-KAM
Cena regularna
€67,04 EUR
Cena regularna
Cena promocyjna
€67,04 EUR
Koszt wysyłki obliczony przy realizacji zakupu.
Availability: Ships in 2–3 weeks
Ilość
Nie można załadować gotowości do odbioru

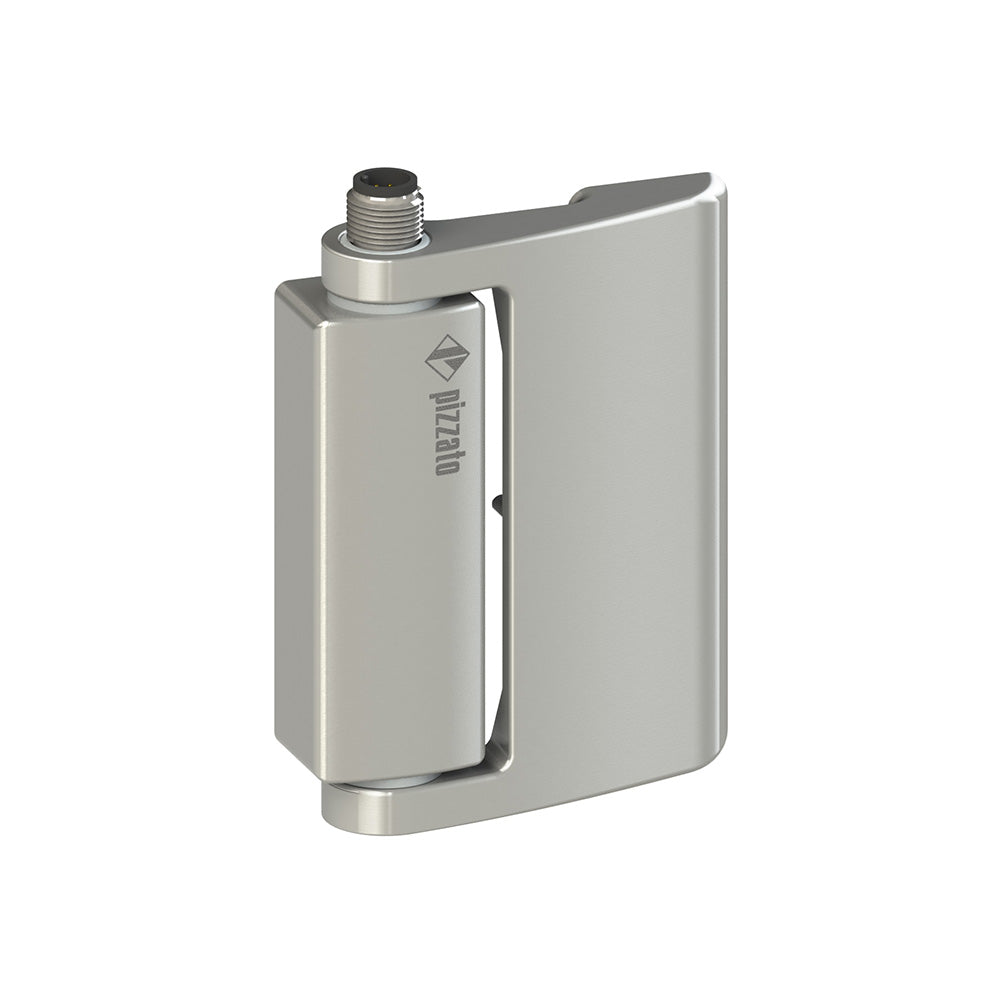

Safety hinge switch, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal body, cable output from top (100x75 mm movable part), Contact block: 1NO+1NC slow action overlapped (53C), Type of cable or connector: M12 connector, 5 poles for contact block with 2 contacts, Positive opening: Yes.
Technical specifications
| Manufacturer part number | HP AB053C-KAM |
|---|---|
| EAN | 8018851374579 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | HP - HC |
| ETIM class | EC002591 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
