Fandis
SKU:FF12A24UFR

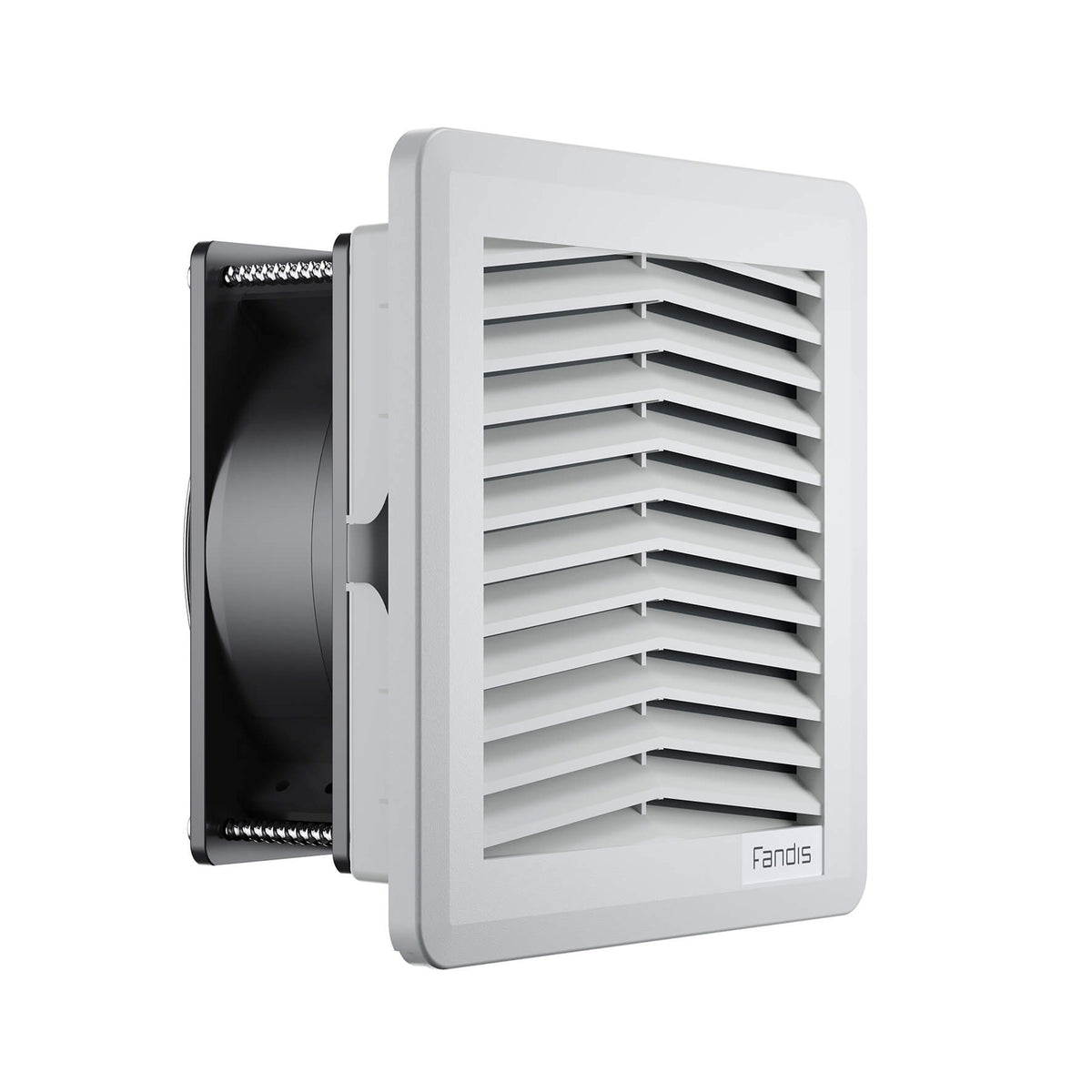

Fandis FF12A24UFR – FAN FILTER
Fandis FF12A24UFR – FAN FILTER
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
Technical specifications
| Manufacturer part number | FF12A24UFR |
|---|---|
| Approvals | CE; UKCA |
| Frequency | 50/60 Hz |
| Motor Protection | Impedance Protected |
| Operating Voltage | 19-26 V d.c. |
| Rated Current | 0.77/0.76 A |
| Rated Power | 15/15 W |
| Rated Voltage | 24 V a.c. |
| IP Protection Degree | IP54 |
| Operating Temperature | -10÷60 °C |
| Storage Temperature | -40÷70 °C |
| Airflow Direction | Reverse |
| Casing Material | PC/ABS UL94 V-0 |
| Electrical Connection | Connector |
| Fan Noise | 46/49 dB(A) |
| Filter Class | G3 EN 779 ISO coarse 55% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 57000 h at 25 °C |
| RAL Number | 7035 |
| Spare Parts Filter Media | M12FPF-EU3 |
| Bearing | Ball Bearing |
| Mounting Wall Thickness | 1.3-3.2 mm |
| Airflow with Exhaust Filter | 38/38 m³/h |
| Max Airflow | 50/51 m³/h |
| Max Static Pressure | 59/40 Pa |
