SALTEK
SKU:A06290
DMHF-015/1-RB
DMHF-015/1-RB
Price on request
Spese di spedizione calcolate al check-out.

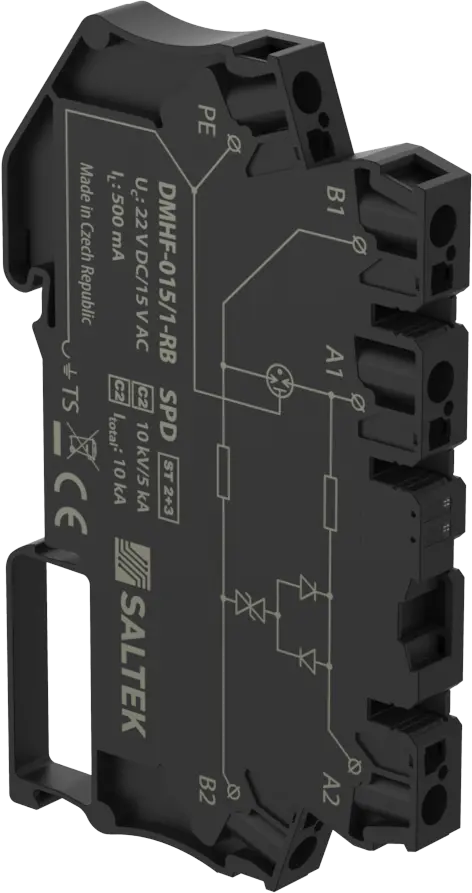

SALTEK DMHF-015/1-RB — Coupling impedance (R – resistance), screwless terminals, coarse and fine surge protection of 2-core high-speed signalling lines, installation close to protected device, for protection of communication interfaces of I&C, MaR systems, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).
Technical specifications
| SALTEK order number | A06290 |
|---|---|
| EAN | 8595090562900 |
| Nominal voltage | 15 V |
| Maximum operating voltage | 15 V AC |
| Maximum operating voltage (DC) | 22 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 70 MHz |
| ETIM class | EC000943 |
| Net weight | 24 g |
| Packing dimensions | 124 × 82 × 25 mm |
