SALTEK
SKU:A06281
DMG-024-V/1-4FR1-DIF
DMG-024-V/1-4FR1-DIF

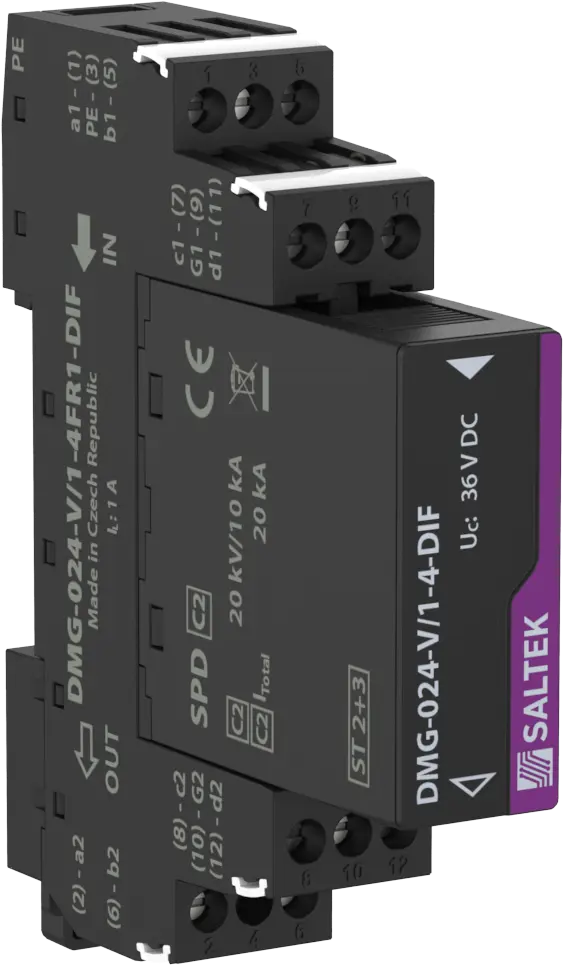

SALTEK DMG-024-V/1-4FR1-DIF — Pluggable module, coupling impedance (R – resistance), shielding (G) separated from protective earth via GDT, coarse and fine surge protection for max. 4-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I <(>&<)>C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection only in differential mode (core – core).
Technical specifications
| SALTEK order number | A06281 |
|---|---|
| EAN | 8595090562818 |
| Nominal voltage | 24 V |
| Maximum operating voltage | 25 V AC |
| Maximum operating voltage (DC) | 36 V DC |
| Nominal load current | 1 A |
| Frequency / bandwidth value | 6 MHz |
| ETIM class | EC001625 |
| Net weight | 100 g |
| Packing dimensions | 124 × 82 × 25 mm |
