SALTEK
SKU:A06570

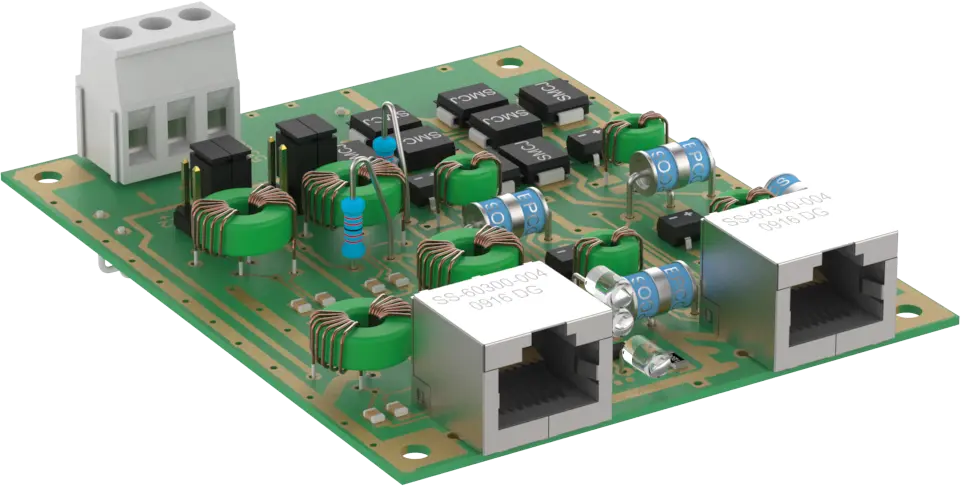

DL-1G-POE-PCB-INJECTOR
DL-1G-POE-PCB-INJECTOR
Price on request
Spese di spedizione calcolate al check-out.
SALTEK DL-1G-POE-PCB-INJECTOR — RJ45 sockets, PCB, with injector, combination of coarse and fine protection of Ethernet line with PoE, instalation at the entry of the line into building and close to protected equipment, at the boundary of LPZ 0 and LPZ 1 or higher, for protection of Ethernet line Cat. 6 or Cat. 6A with PoE (Power over Ethernet) in mode A or B against surge voltage, for assembly to DL-CS-RACK-1U-INJECTOR.
Technical specifications
| SALTEK order number | A06570 |
|---|---|
| EAN | 8595090565703 |
| Nominal voltage | 8.5 V |
| Maximum operating voltage (DC) | 8.5 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 250 MHz |
| ETIM class | EC000943 |
| Net weight | 43 g |
| Packing dimensions | 120 × 82 × 35 mm |
