SALTEK
SKU:A05173
CLSA-TLF
CLSA-TLF
Price on request
Spese di spedizione calcolate al check-out.

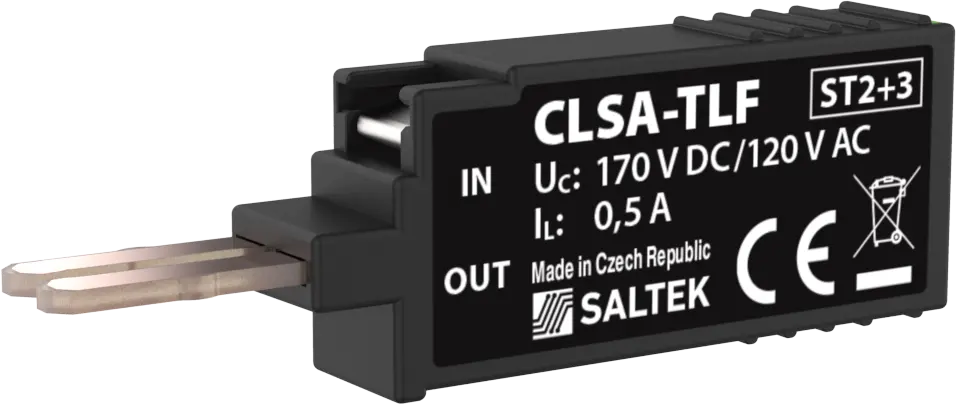

SALTEK CLSA-TLF — For LSA-PLUS separating strips, combination of coarse and fine protection of 2-core telecommunication lines, installation close to protected equipment, for protection of telecommunication lines against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and coarse protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A05173 |
|---|---|
| EAN | 8595090551737 |
| Maximum operating voltage | 120 V AC |
| Maximum operating voltage (DC) | 170 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 14 MHz |
| ETIM class | EC000943 |
| Net weight | 10 g |
| Packing dimensions | 70 × 25 × 15 mm |
