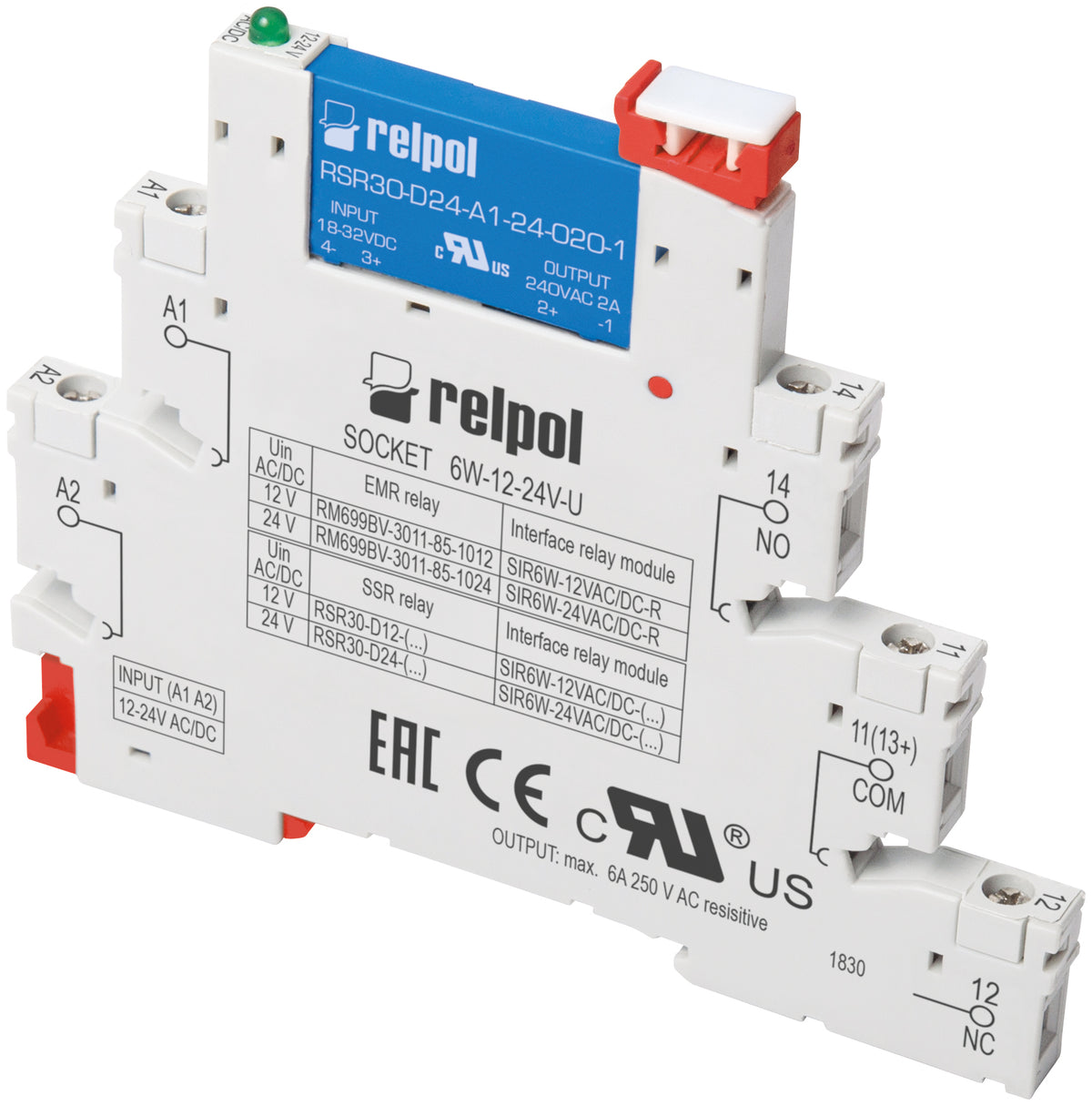

Relpol SIR6W-24VAC/DC-T – Interface Relays

Name: Relpol SIR6W-24VAC/DC-T – Interface Relays
Brand: Relpol
SKU: SIR6W-24VAC/DC-T
Availability: InStock

Price on request

Esaurito

Spese di spedizione calcolate al check-out.

Request a price

Interface relay: consists with:universal socket 6W-12-24V-U and relay RSR30-D24-A1-24-020-1. Width: 6,2 mm. AgSnO2, 24V AC/DC, Rated load AC1 - 6A/250 V; DC1 - 6A/30 V, Operating temperature °C -40…+55, Dimensions: 88,6 x 6,2 x 76 mm. IP 20. Mounting on 35 mm rail

Technical specifications

Type of coil supply	AC/DC
Coil voltage	24 V
Contact material	AgSnO2
Number and type of contacts	1 NO
Rated load AC1	6 A / 250 V AC
Rated load AC3	0,186 kW
Rated load DC1	6 A / 30 V DC
Rated switching voltage	240 V AC
Mounting	mounting on 35 mm rail
Depth	88,6
Width mm	6,2
Height mm	76
Weight kg	0,028
ETIM class	EC001437
Relay type	SIR6W-…
Ip cover	IP 20
