Relpol
SKU:RUO400-3014-28-1220

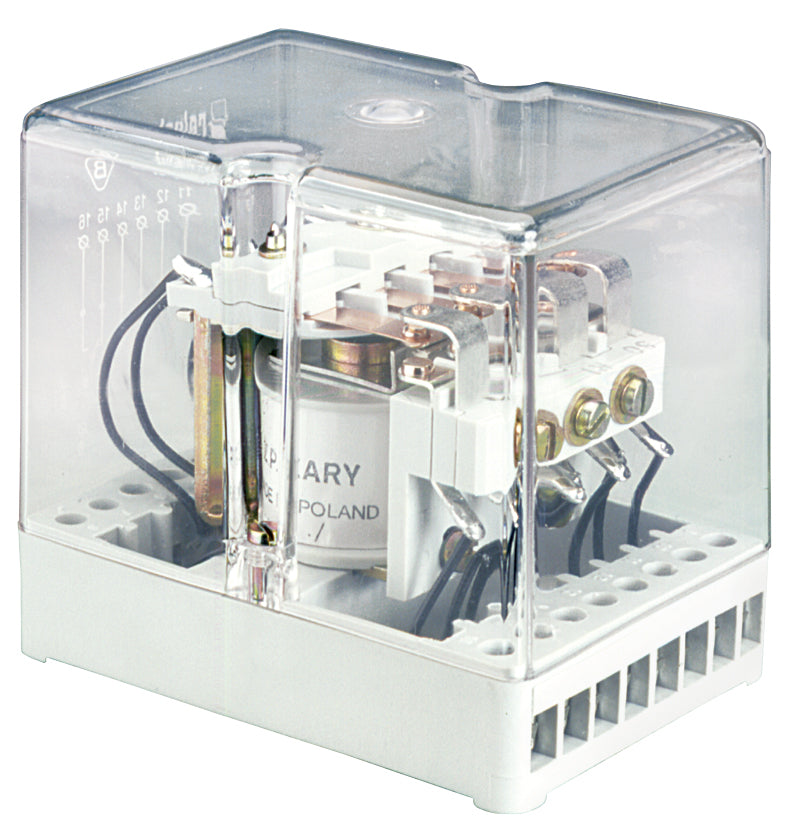

Relpol RUO400-3014-28-1220 – Industrial Relays
Relpol RUO400-3014-28-1220 – Industrial Relays
Price on request
Spese di spedizione calcolate al check-out.
Relpol RUO400-3014-28-1220. Industrial Relays.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 220 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 4 CO |
| Rated load AC1 | 5 A / 400 V AC |
| Rated load DC1 | 5 A / 24 V DC |
| Rated switching voltage | 400 V AC |
| Connection | Enclosed, with screw terminals |
| Depth (mm) | 60 |
| Width (mm) | 87 |
| Height (mm) | 77,5 |
| Weight (kg) | 0,4 |
| ETIM class | EC001437 |
| Relay type | RU400 |
| Enclosure protection | IP 40 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
