SKU:RSR25-24D5R-24S-B

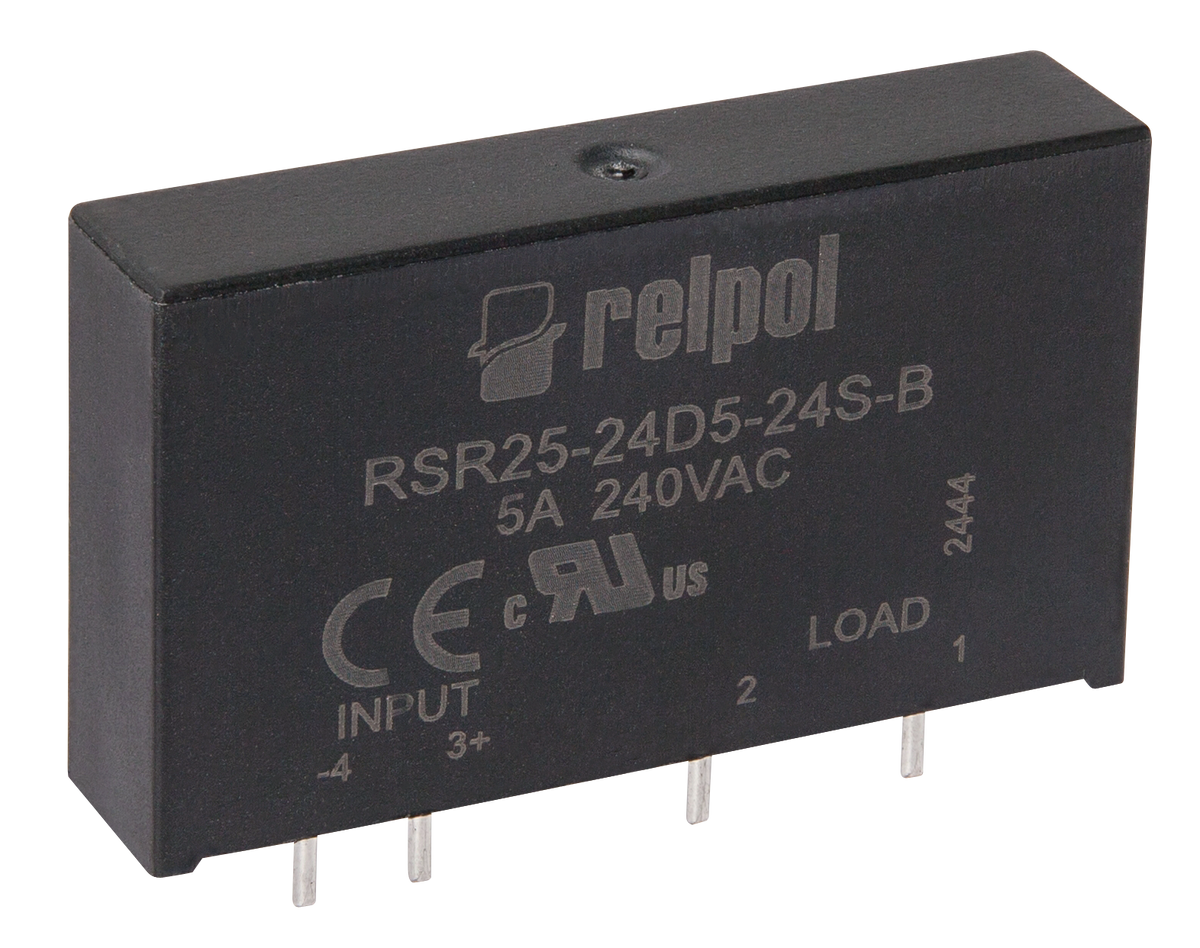

Relpol RSR25-24D5R-24S-B – Solid State Relays
Relpol RSR25-24D5R-24S-B – Solid State Relays
Price on request
Spese di spedizione calcolate al check-out.
Solid-state relay RSR25, miniature, single-phase: control voltage 4–32 V DC, load current 5 A, load voltage 24–280 V AC. Random turn-on switching. Designed for printed circuit boards (PCBs).
Technical specifications
| Mounting | PCB mounting |
|---|---|
| Depth | 44,5 |
| Width mm | 10,5 |
| Height mm | 26 |
| Weight kg | 0,02 |
| ETIM class | EC002055 |
| Relay type | RSR25-…-B |
