Relpol
SKU:RSP-PV4.5-1500-3P

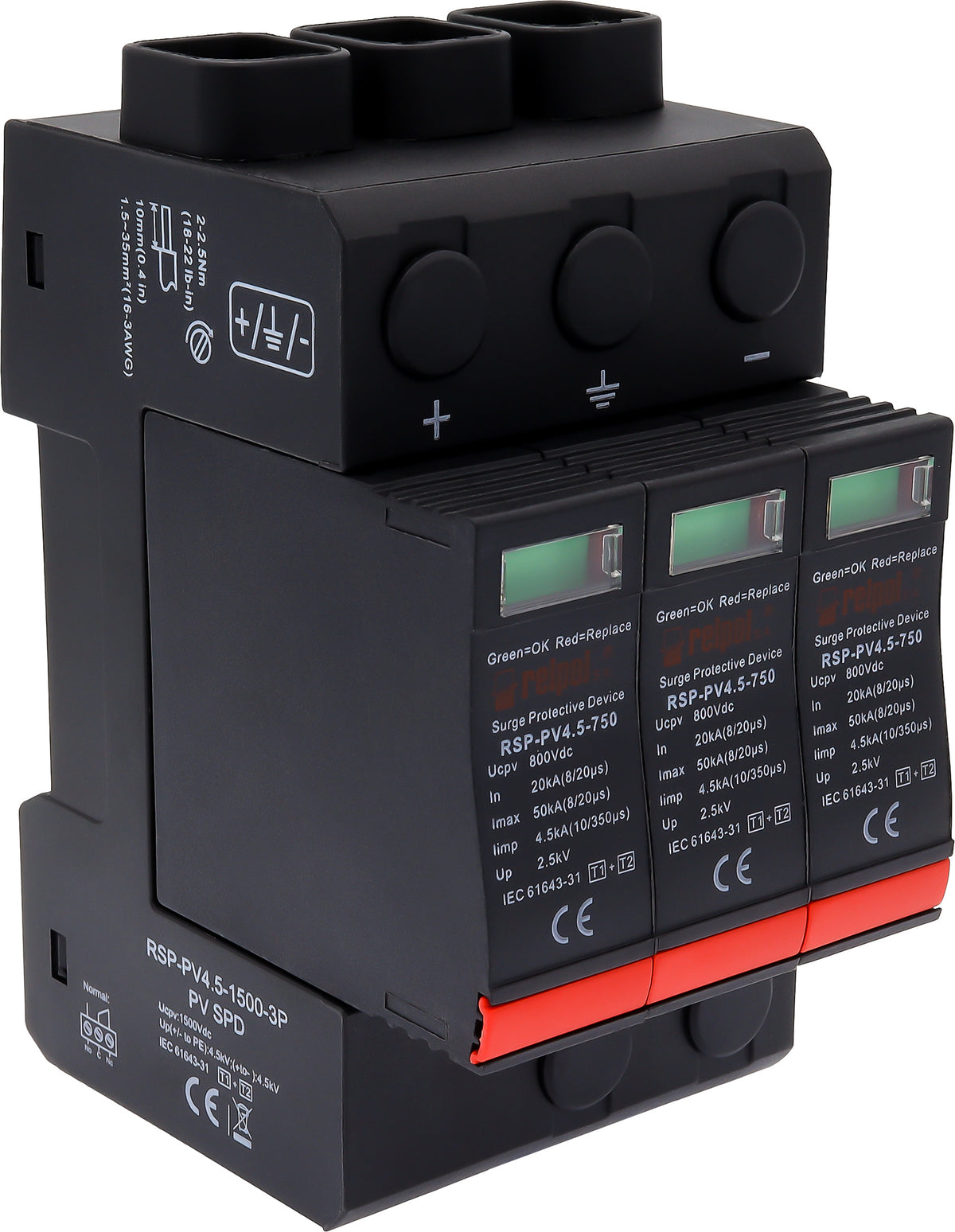

Relpol RSP-PV4.5-1500-3P – Photovoltaic (PV) Surge Protection
Relpol RSP-PV4.5-1500-3P – Photovoltaic (PV) Surge Protection
Price on request
Spese di spedizione calcolate al check-out.
Surge arrester for DC installations for DC/PV networks. Plug-in design Class I+II (T1+T2), number of poles 3. Rated voltage 1500 V DC. Rated discharge current In 20KA, max discharge current 50KA, peak current Iimp 4.5 kA 10/350. MOV technology with potential-free contact for remote fault indication.
Technical specifications
| Depth | 89,7 |
|---|---|
| Width mm | 54 |
| Height mm | 64 |
| Weight kg | 0,386 |
| ETIM class | EC001457 |
| Ip cover | IP20 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
