Relpol
SKU:RSP-E25-11

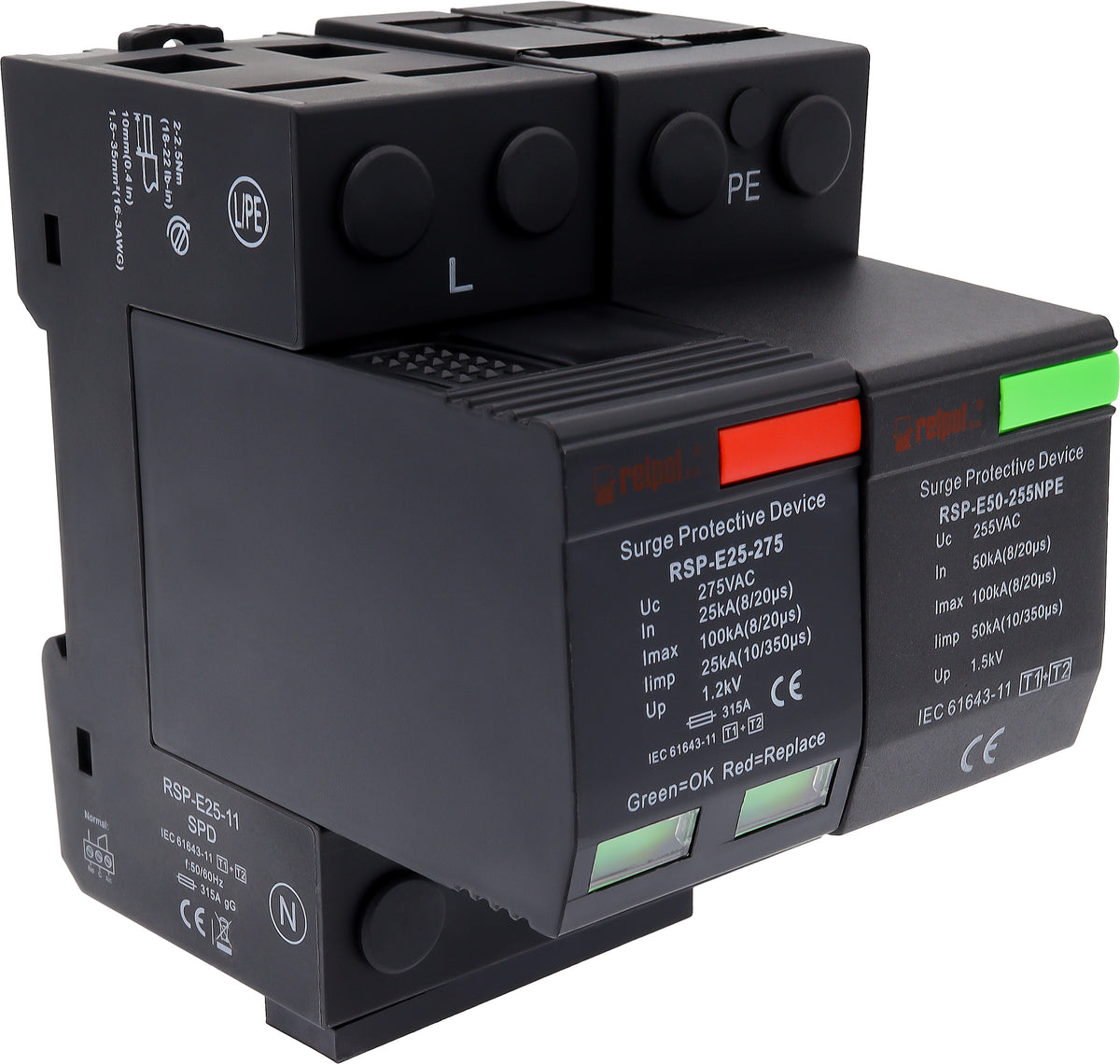

Relpol RSP-E25-11 – AC Power Surge Protection
Relpol RSP-E25-11 – AC Power Surge Protection
Price on request
Spese di spedizione calcolate al check-out.
Surge arrester for AC installations. Plug-in design, Class I+II (T1+T2). Iimp 25 kA (10/350), Imax 100 kA for L-N and 50 kA (10/350) for N-PE. 1+1 single-phase configuration. Uc 275 V AC. MOV for L-N and GDT for N-PE. With potential-free contact. 36 mm width per pole.
Technical specifications
| Depth | 94 |
|---|---|
| Width mm | 72 |
| Height mm | 86 |
| Weight kg | 0,506 |
| ETIM class | EC001457 |
| Relay type | RSP |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
