Relpol
SKU:RM699BV-3021-85-1060

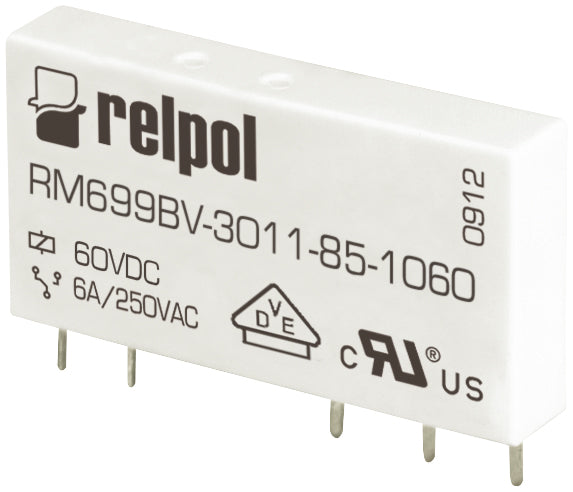

Relpol RM699BV-3021-85-1060 – Industrial Relays
Relpol RM699BV-3021-85-1060 – Industrial Relays
Price on request
Spese di spedizione calcolate al check-out.
Miniature relays RM699BV-3021-85-1060, 1 NO. Contact material: AgSnO2. Voltage coil 60 V DC. Rated load AC1 6 A / 250 V AC. Mounting: for PCB and sockets. Cover protection category IP 67.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 60 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 NO |
| Rated load AC1 | 6 A / 250 V AC |
| Rated load AC3 | 0,186 kW |
| Rated load DC1 | 6 A / 30 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for PCB and sockets |
| Depth | 28 |
| Width mm | 15 |
| Height mm | 5 |
| Weight kg | 0,006 |
| ETIM class | EC001437 |
| Relay type | RM699B |
| Ip cover | IP 67 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
