Relpol
SKU:R15-3014-23-1110-PKP

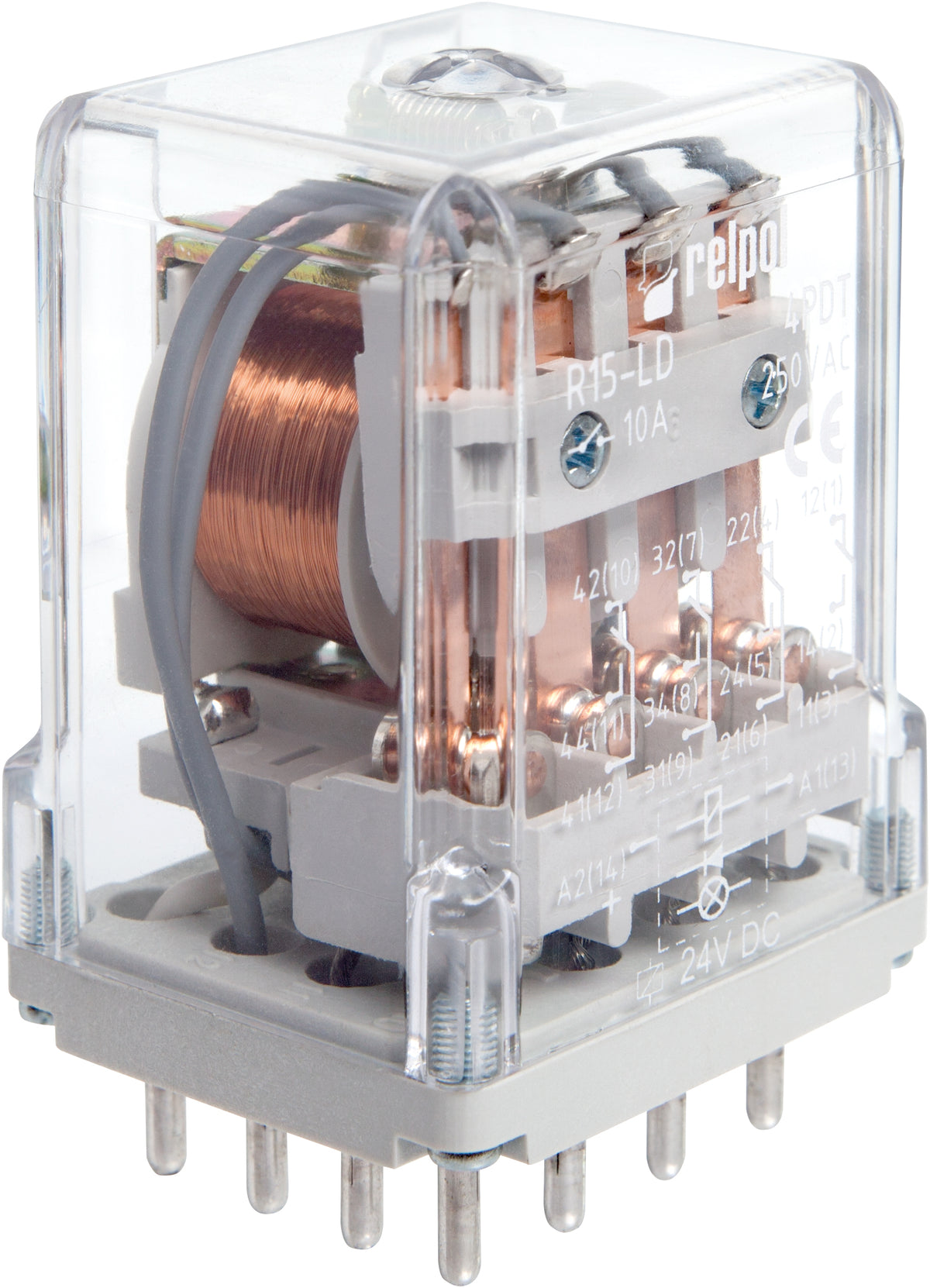

Relpol R15-3014-23-1110-PKP – Industrial Relays
Relpol R15-3014-23-1110-PKP – Industrial Relays
Price on request
Spese di spedizione calcolate al check-out.
Relpol R15-3014-23-1110-PKP. Industrial Relays.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 110 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 4 CO |
| Rated load AC1 | 10 A / 250 V AC |
| Rated load AC3 | 0,37 kW |
| Rated load DC1 | 10 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Connection | Plug-in (socket mounting) |
| Depth (mm) | 35 |
| Width (mm) | 42,5 |
| Height (mm) | 54,5 |
| Weight (kg) | 0,095 |
| ETIM class | EC001437 |
| Relay type | R15 |
| Enclosure protection | IP 40 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
