Relpol
SKU:R15-2013-14-1220

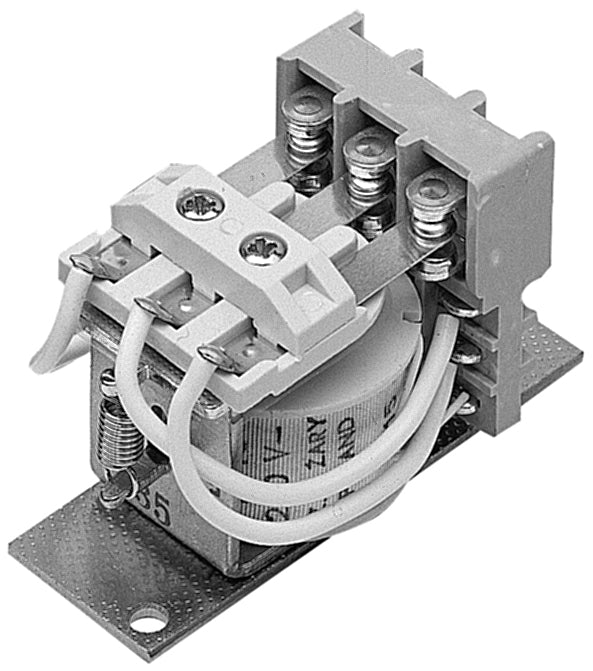

Relpol R15-2013-14-1220 – Industrial Relays
Relpol R15-2013-14-1220 – Industrial Relays
Price on request
Spese di spedizione calcolate al check-out.
Relpol R15-2013-14-1220. Industrial Relays.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 220 V |
| Contact material | AgNi |
| Number and type of contacts | 3 CO |
| Rated load AC1 | 10 A / 250 V AC |
| Rated load AC3 | 0,37 kW |
| Rated load DC1 | 10 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Connection | do lutowania |
| Depth (mm) | 35 |
| Width (mm) | 35 |
| Height (mm) | 54,4 |
| Weight (kg) | 0,083 |
| ETIM class | EC001437 |
| Relay type | R15 |
| Enclosure protection | IP 00 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
