Relpol
SKU:R15-2012-23-1110-WTLD

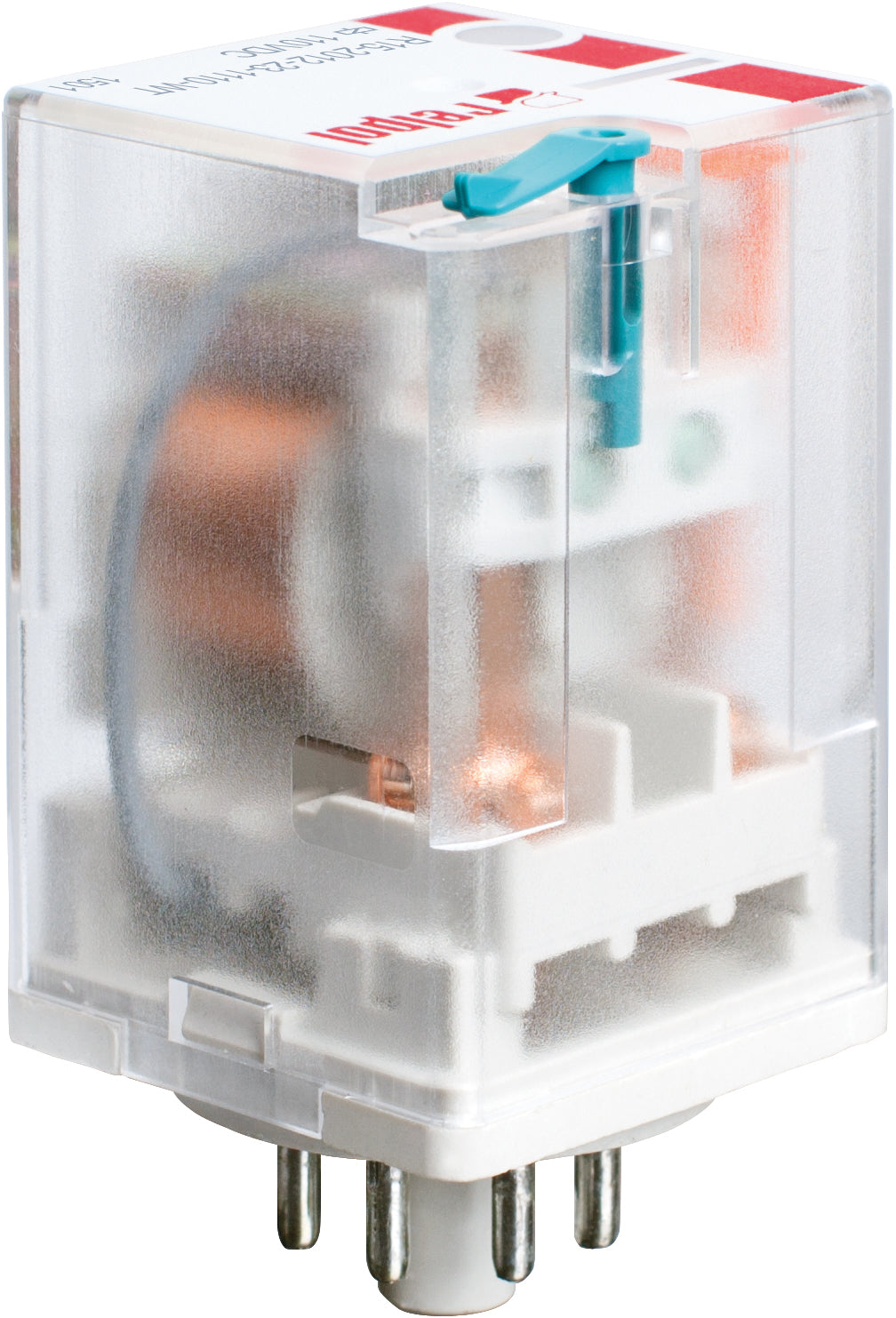

Relpol R15-2012-23-1110-WTLD – Industrial Relays
Relpol R15-2012-23-1110-WTLD – Industrial Relays
Price on request
Spese di spedizione calcolate al check-out.
Industrial relays R15-2012-23-1110-WTLD, 2 CO. Contact material: AgNi. Voltage coil 110 V DC. Rated load AC1 10 A / 250 V AC. Mounting: for plug-in sockets. Cover protection category IP 40.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 110 V |
| Contact material | AgNi |
| Number and type of contacts | 2 CO |
| Rated load AC1 | 10 A / 250 V AC |
| Rated load AC3 | 0,37 kW |
| Rated load DC1 | 10 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for plug-in sockets |
| Depth | 35 |
| Width mm | 35 |
| Height mm | 54,4 |
| Weight kg | 0,083 |
| ETIM class | EC001437 |
| Execution | niestandardowe |
| Relay type | R15 |
| Ip cover | IP 40 |
