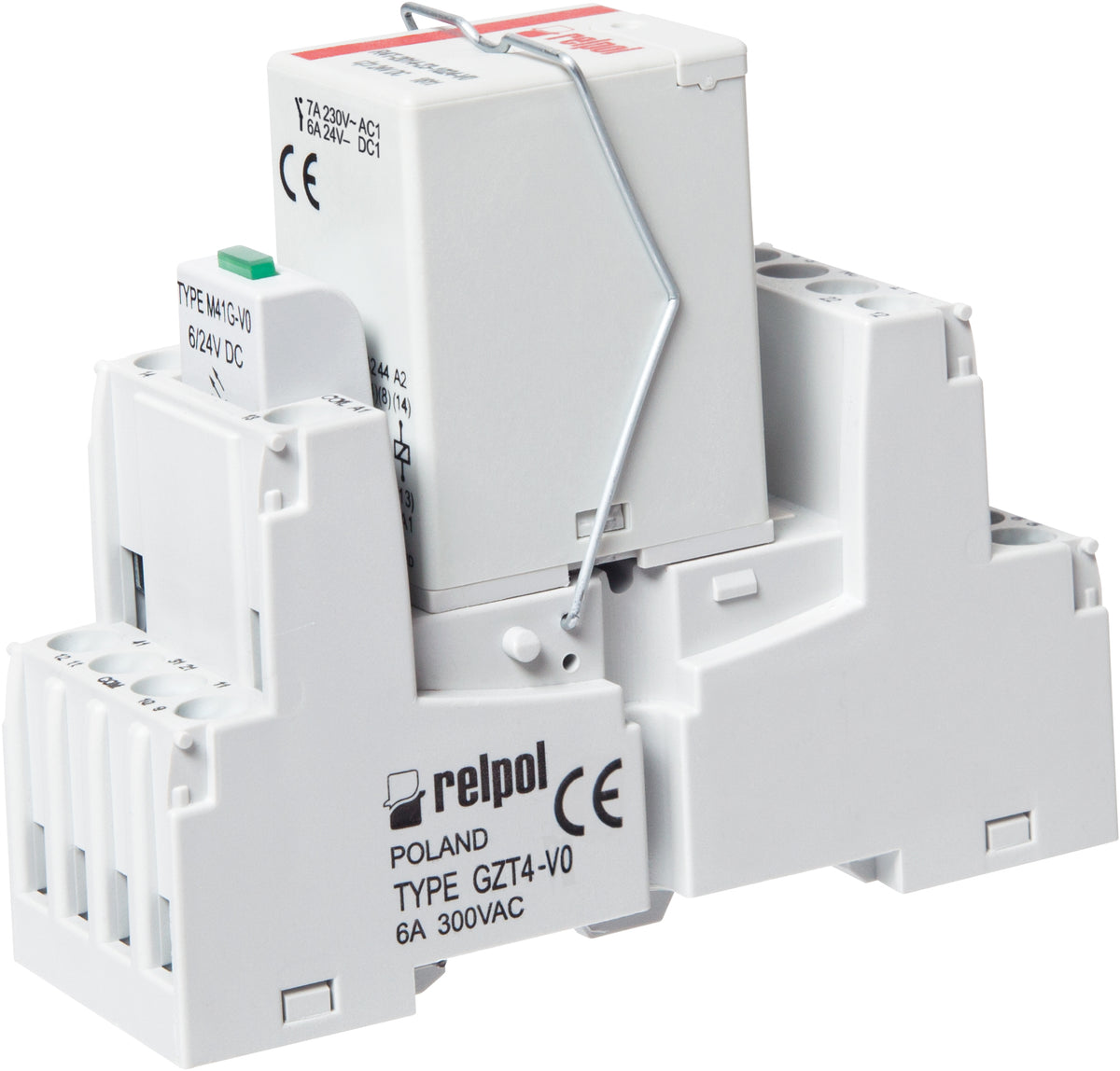

Relpol PIR4T-024DC-M41G-V0 – Interface Relays
Relpol PIR4T-024DC-M41G-V0 – Interface Relays
Price on request
Spese di spedizione calcolate al check-out.
Relays for railroad industry - interface PIR4T-024DC-M41G-V0, 4 CO. Contact material: AgNi. Voltage coil 24 V DC. Rated load AC1 7 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgNi |
| Number and type of contacts | 4 CO |
| Rated load AC1 | 7 A / 250 V AC |
| Rated load AC3 | 0,37 kW |
| Rated load DC1 | 7 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | mounting on 35 mm rail |
| Depth | 76,3 |
| Width mm | 27 |
| Height mm | 65 |
| Weight kg | 0,094 |
| ETIM class | EC001437 |
| Relay type | PIR4T |
| Ip cover | IP 20 |
