Relpol PIR2-024AC-M91G-PS-2012 – Interface Relays
Relpol PIR2-024AC-M91G-PS-2012 – Interface Relays
Price on request
Spese di spedizione calcolate al check-out.

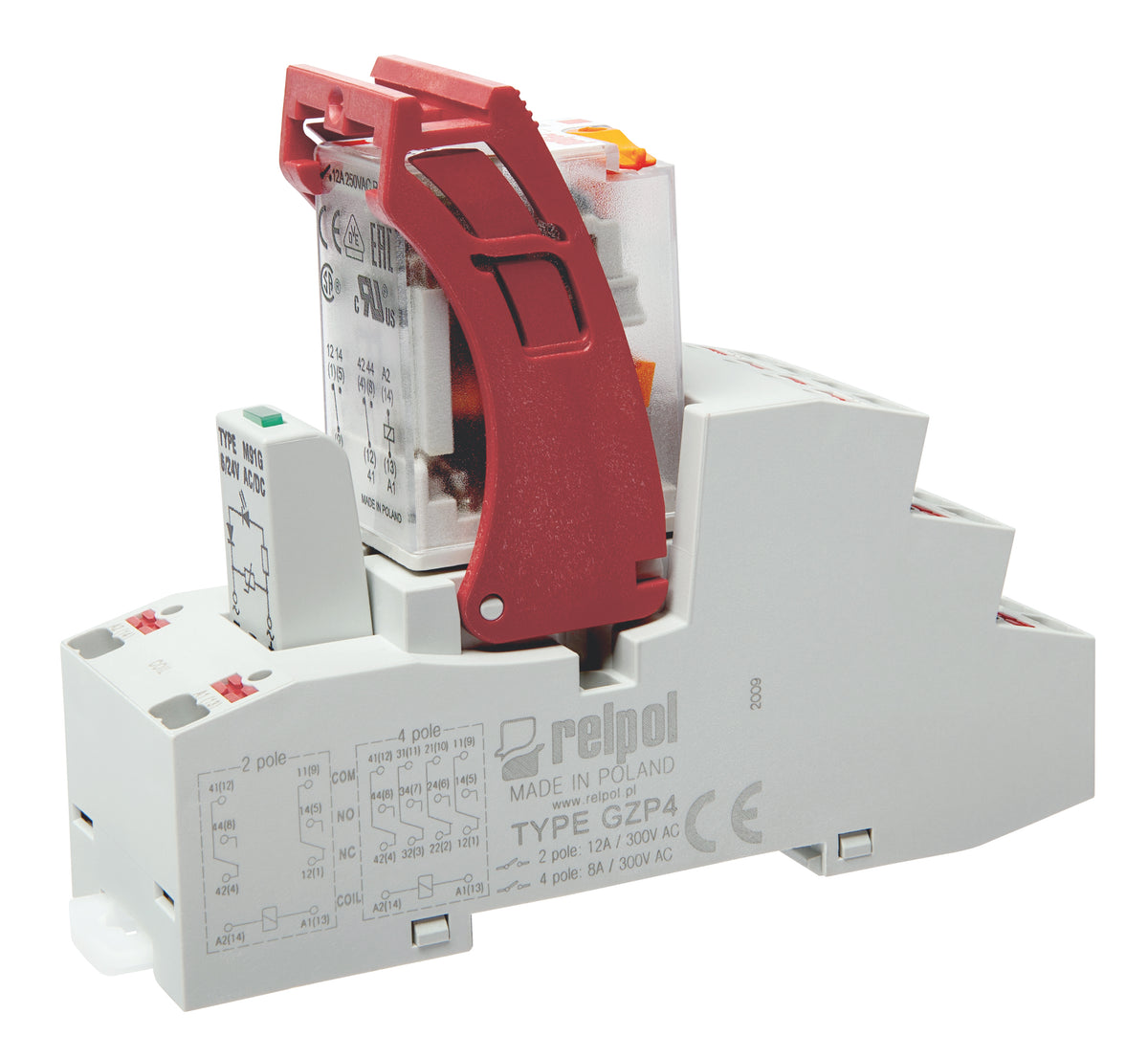

Push-in interface relay set: relay R2N (contacts 2 CO, AgNi, rated load 12 A, coil voltage 24 V AC 50/60 Hz), socket GZP4 (grey, Push-in), module M91G (version LV), clip GZP4-0400
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 24 V |
| Contact material | AgNi |
| Number and type of contacts | 2 CO |
| Rated load AC1 | 12 A / 250 V AC |
| Rated load AC3 | 0,37 kW |
| Rated load DC1 | 12 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | mounting on 35 mm rail |
| Depth | 97 |
| Width mm | 31 |
| Height mm | 75,8 |
| Weight kg | 0,0117 |
| ETIM class | EC001437 |
| Relay type | PIR2 |
| Ip cover | IP 20 |
