SKU:PIR153-120DC-00T

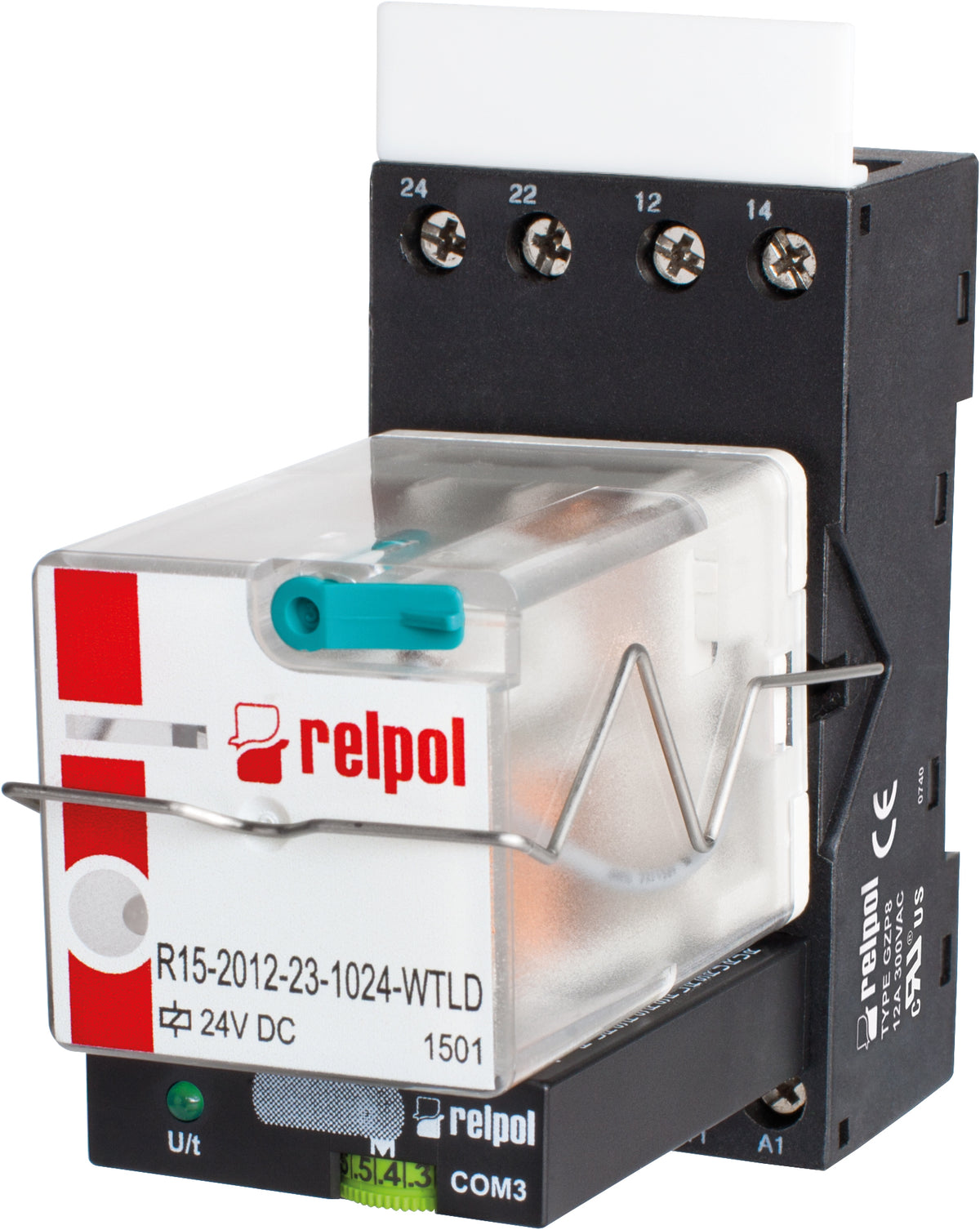

Relpol PIR153-120DC-00T – Time Relays
Relpol PIR153-120DC-00T – Time Relays
Price on request
Spese di spedizione calcolate al check-out.
Time relays , PIR153-120DC-00T, 3 CO ( 3PDT), AgNi, 120V DC, Rated load AC1 10 A, Rated load AC3 370 W, Rated switching voltage 250 V AC, Operating temperature °C -40…+55, mounting on 35 mm rail
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 120 V |
| Contact material | AgNi |
| Number and type of contacts | 3 CO |
| Rated load AC1 | 10 A / 250 V AC |
| Rated load AC3 | 0,37 kW |
| Rated load DC1 | 10 A / 24 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | mounting on 35 mm rail |
| Depth | 73 |
| Width mm | 38,2 |
| Height mm | 85,4 |
| Weight kg | 0,175 |
| ETIM class | EC001439 |
| Relay type | PIR15...T |
| Ip cover | IP 20 |
| Time ranges | 1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d |
