Relpol GZM2 – Relay Sockets & Bases

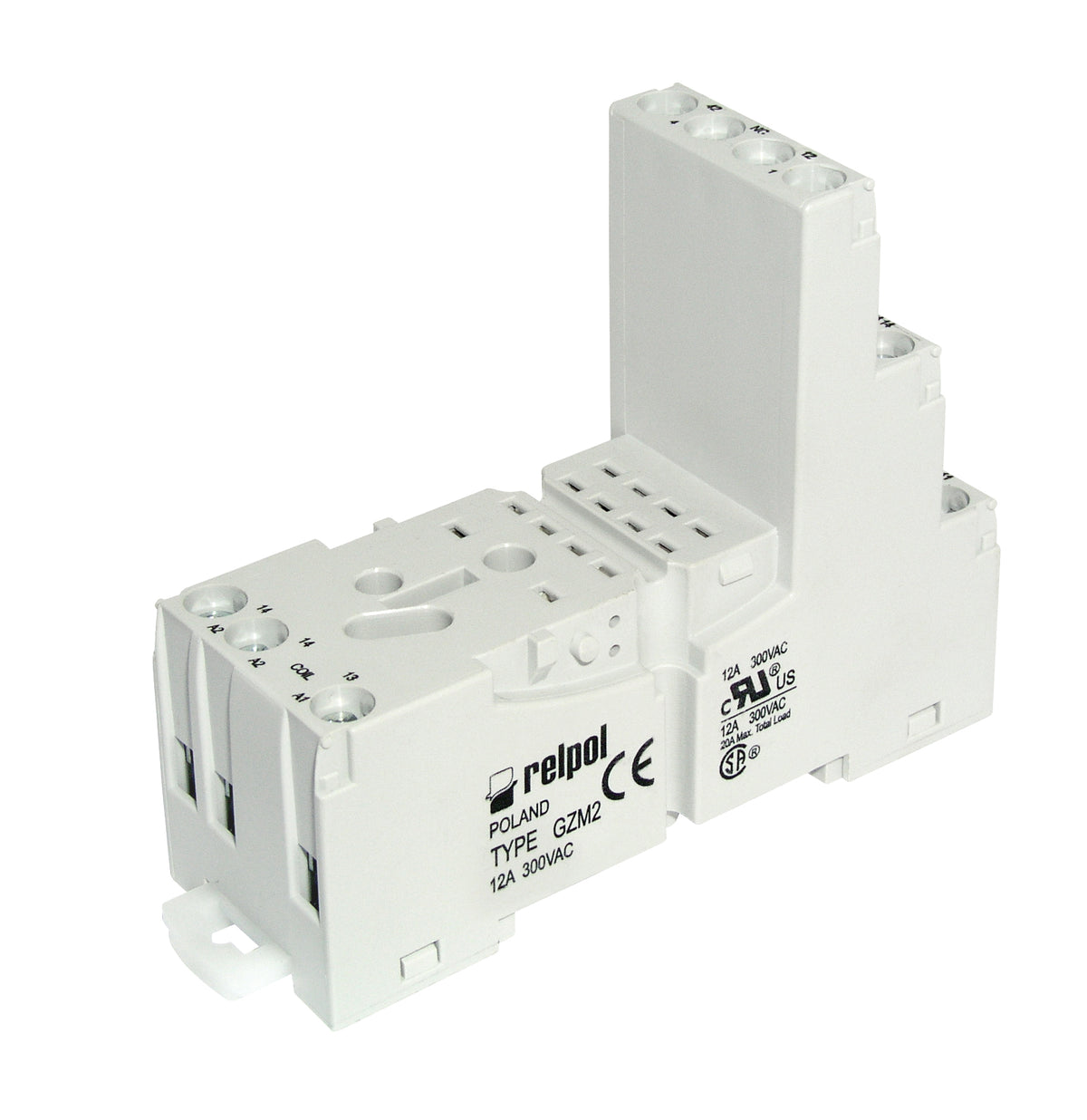

Plug-in socket, for R2N relay - 27 mm wide. Grey colour. Circuit separation - coil terminals on one side and contact terminals on the opposite side of the socket. Input / coil - terminals: (+)A1(13) - (-)A2(14) - double A2 terminal. Output / contacts - terminals: 11(9)-12(1)-14(5); 41(12)-42(4)-44(8). Track load capacity: 12 A / 300 V AC. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Dimensions of the GZM2 + R2N + GZT4-0040 set: 75 x 27 x 82 mm; of the GZM2 + R2 + G4 1052 set: 75 x 27 x 68.6 mm. Note: a GZT4-0040 type clip, the so-called retaining clip, made of plastic or a G4 1052 spring clip must be ordered separately for the socket. Signaling / surge protection modules type M... can be installed in the socket; Set - IP 20.

Technical specifications
