Pizzato
SKU:PX 12011-M2
PX 12011-M2
PX 12011-M2
Prezzo di listino
€41,96 EUR
Prezzo di listino
Prezzo scontato
€41,96 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

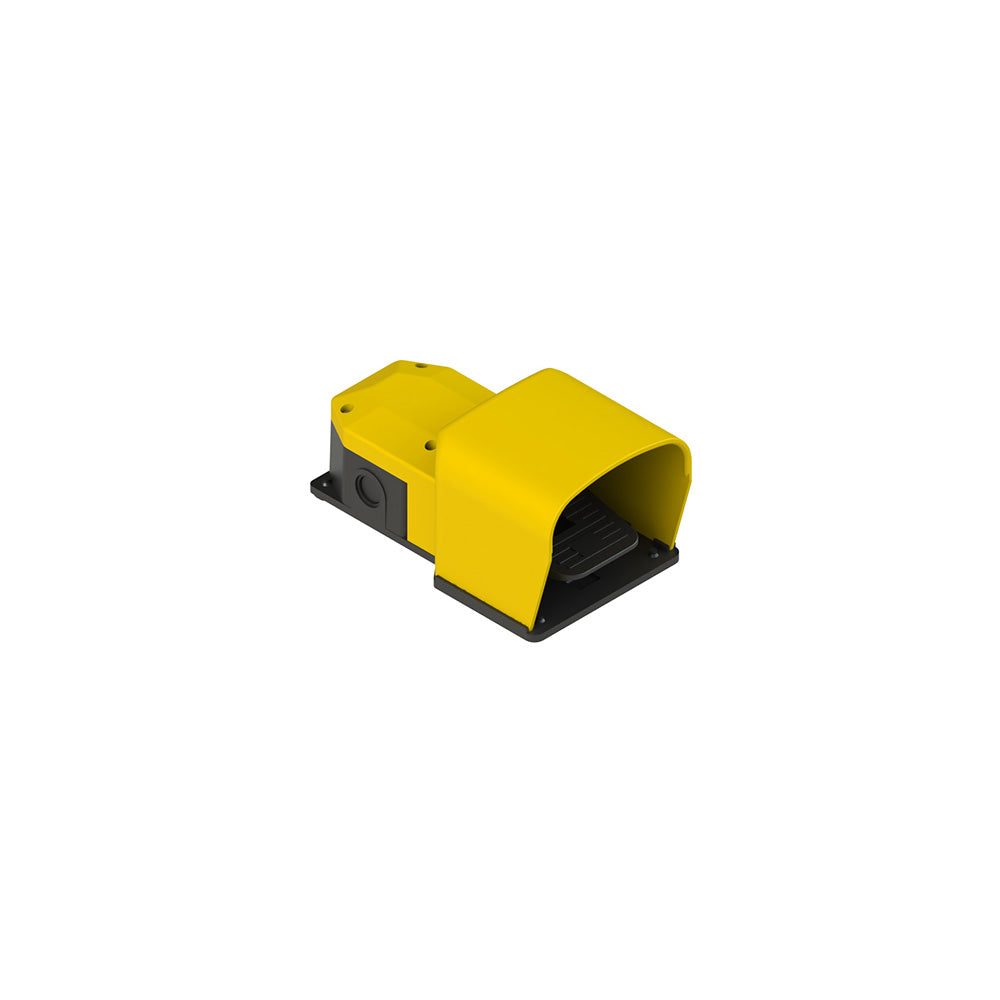

Single foot switch with protection, Housing: Technopolymer housing, one threaded conduit entry M20x1,5, Protection type: With protection, Yellow colour (RAL 1023), Contact block: 2x(1NO+1NC fast action) shifted, Protection degree: IP65, Positive opening: Yes.
Technical specifications
| Manufacturer part number | PX 12011-M2 |
|---|---|
| EAN | 8018851313608 |
| Minimum order quantity | 1 |
| Weight | 747 g |
| Customs tariff number | 85369095 |
| Product range | PX foot switches |
| ETIM class | EC001258 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
