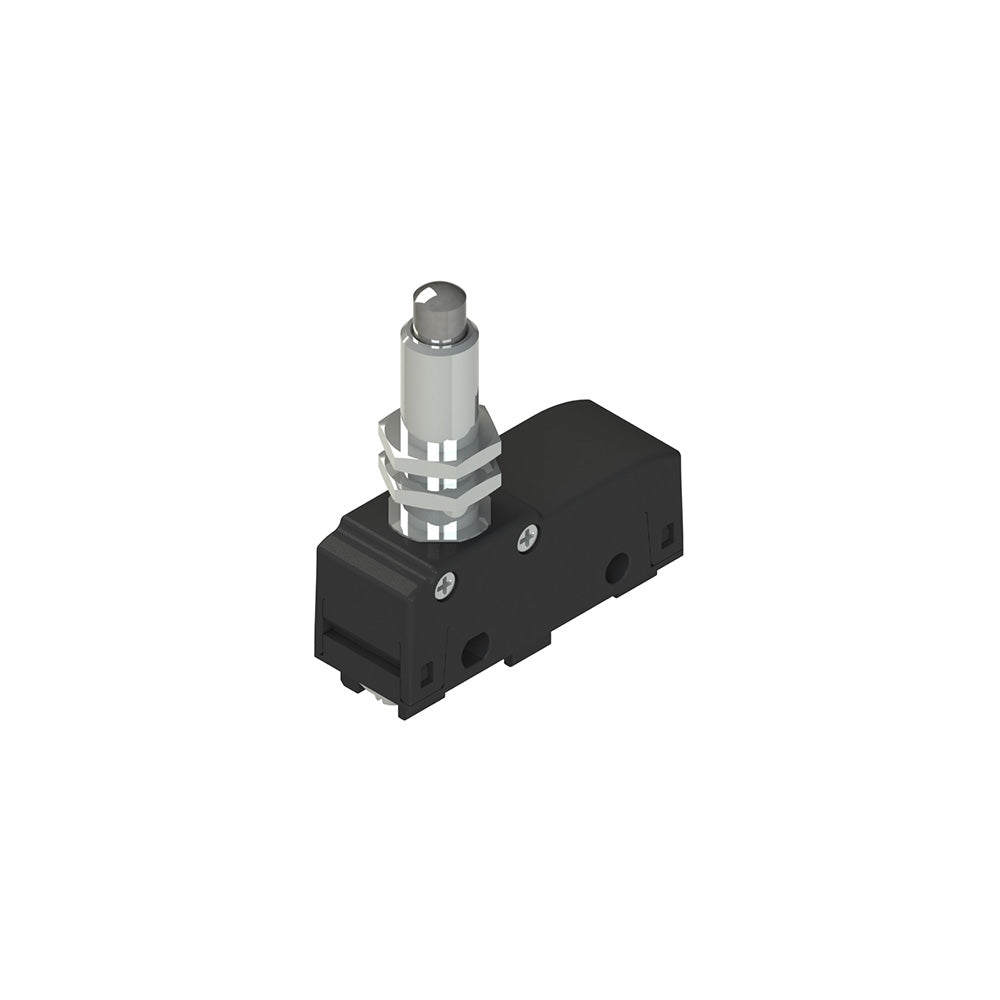

MK V11D08-T7

Microswitch with threaded plunger, Ambient temperature: From -25 °C to +120 °C, Housing: Technopolymer housing, Terminal type: Screws with self-lifting plate, Contact block: 1NO+1NC changeover, Maximum protection degree: IP00 without terminal cover; IP20 with terminal cover VF C01, VF C03; IP40 with terminal cover VF MKCx1x, VF C02, Actuation type: Direct action, Actuator: With threaded M10x0.75 plunger, Positive opening: Yes.

Technical specifications

Documentation

• English catalogue / technical documentation 1
