Pizzato
SKU:FR 20C3-M2
FR 20C3-M2
FR 20C3-M2
Prezzo di listino
€21,72 EUR
Prezzo di listino
Prezzo scontato
€21,72 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

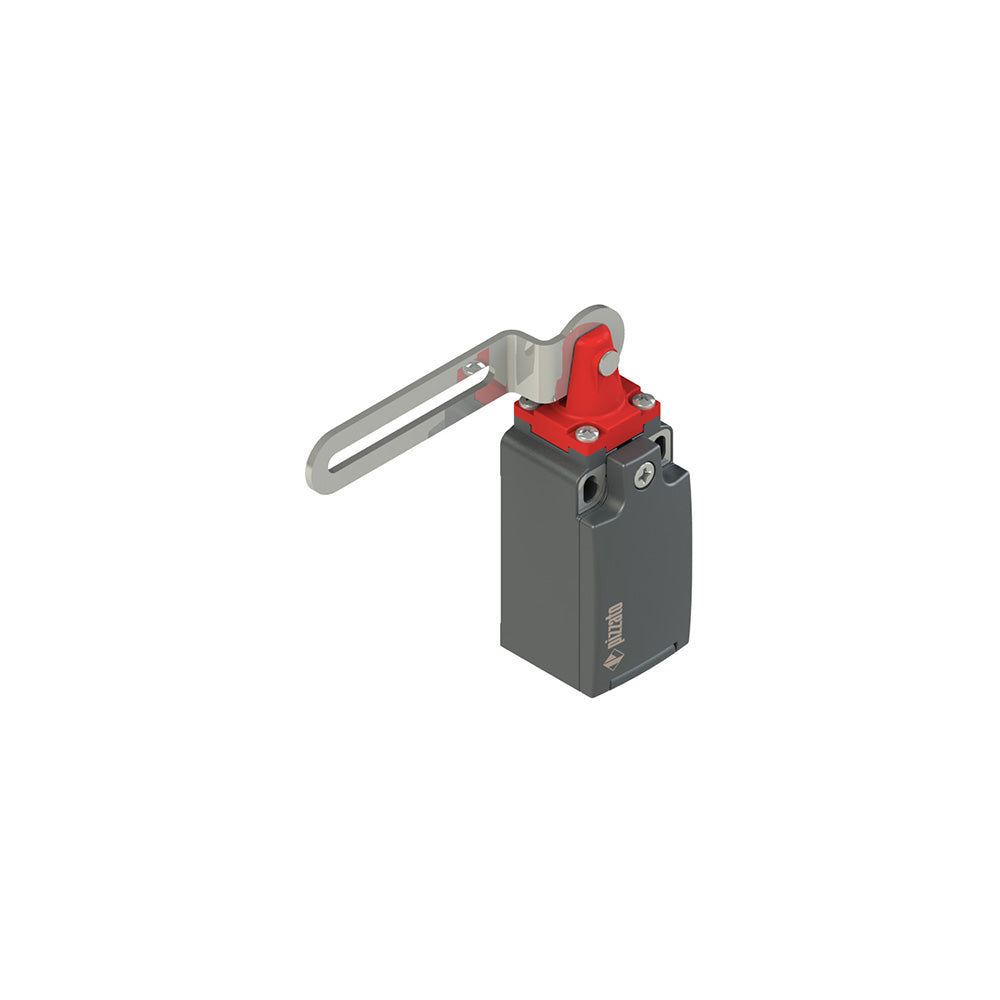

Safety switch with slotted hole lever, Housing: Technopolymer housing, one threaded M20x1,5 conduit entry (FR series), Contact block: 1NO+2NC slow action (B20), Head: With slotted hole lever at the left, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 20C3-M2 |
|---|---|
| EAN | 8018851094767 |
| Minimum order quantity | 1 |
| Weight | 97 g |
| Customs tariff number | 85369095 |
| Product range | With slotted lever |
| ETIM class | EC002591 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
