Pizzato
SKU:FM 750
FM 750
FM 750
Prezzo di listino
€15,66 EUR
Prezzo di listino
Prezzo scontato
€15,66 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

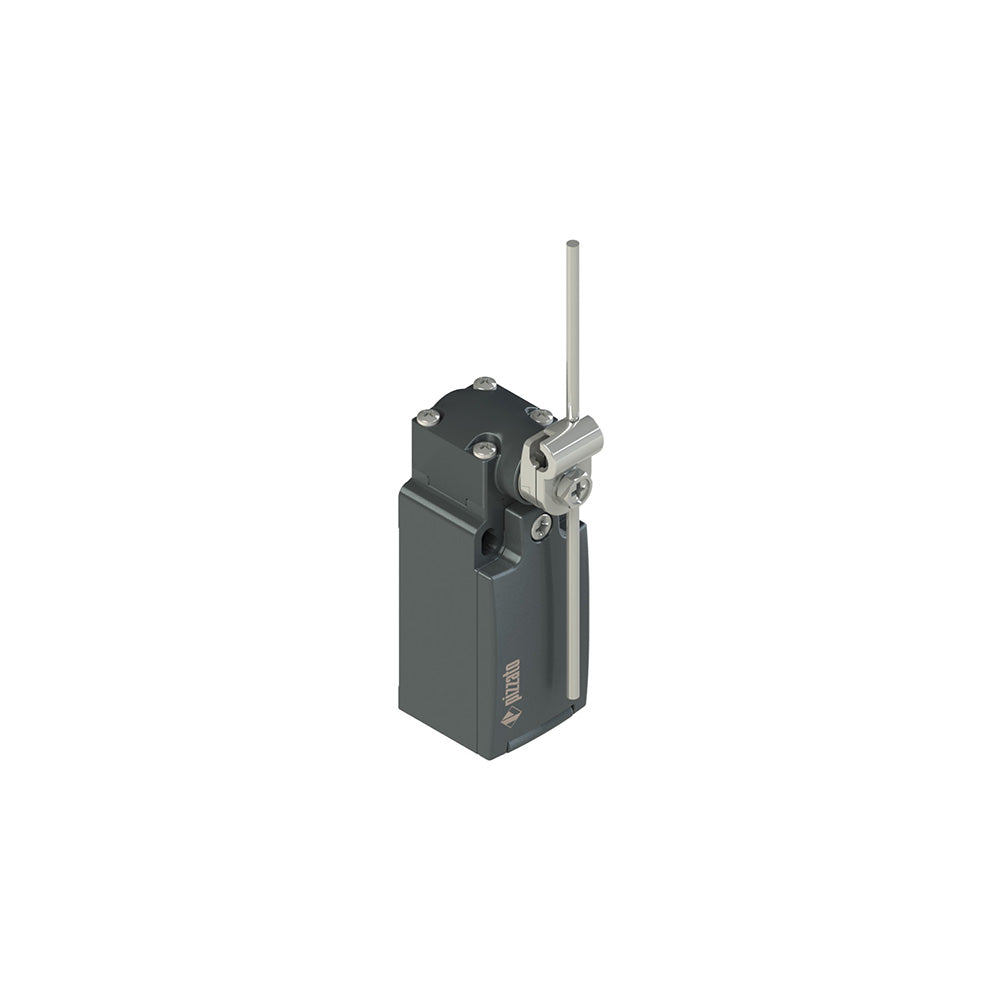

Position switch with adjustable round rod lever, Housing: Metal housing, one threaded PG 13,5 conduit entry (FM series), Contact block: 1NO+1NC slow action, overlapped contacts (B7), Head: For rotating levers, Actuator: With adjustable round stainless steel rod lever, 3x125 mm diameter, Protection degree: IP67 according to EN 60529.
Technical specifications
| Manufacturer part number | FM 750 |
|---|---|
| EAN | 8018851025075 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FM |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
