Pizzato
SKU:FC 3356-M2
FC 3356-M2
FC 3356-M2
Prezzo di listino
€22,57 EUR
Prezzo di listino
Prezzo scontato
€22,57 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

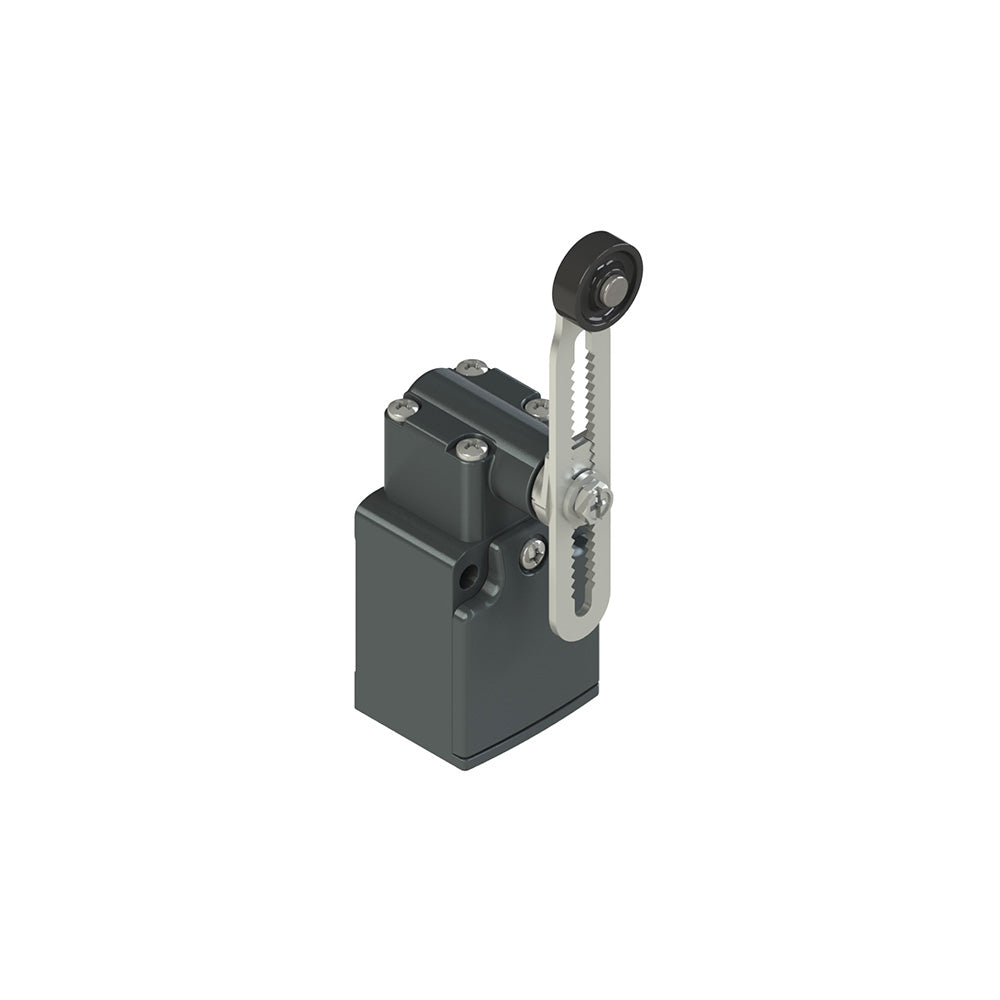

Position switch with adjustable roller lever, Housing: Metal housing, one treaded M20x1,5 conduit entrie (FC series), Contact block: 1NO+1NC slow action (B33), Head: Regular head for rotating levers , Actuator: With adjustable technopolymer roller and notching lever, 20 mm diameter, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FC 3356-M2 |
|---|---|
| EAN | 8018851342226 |
| Minimum order quantity | 1 |
| Weight | 331 g |
| Customs tariff number | 85369095 |
| Product range | FC |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
