Pizzato
SKU:E2 AC-DXBC1000
E2 AC-DXBC1000
E2 AC-DXBC1000
Availability: Ships within 7 days
Impossibile caricare la disponibilità di ritiro

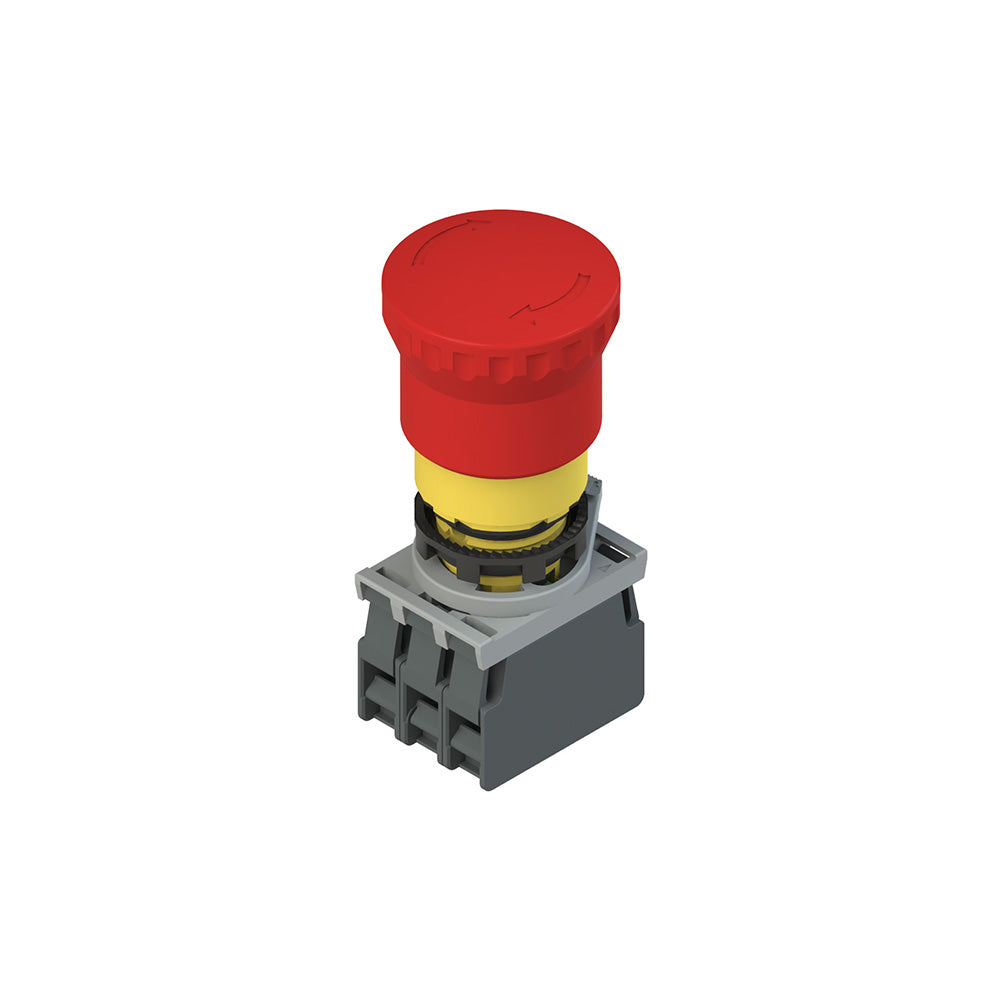

Complete unit with emergency pushbutton, fixing adapter and contacts, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Composition: (1x) E2 1PERZ4531: Turn to release emergency pushbutton; (1x) E2 1BAC11: Fixing adpter for E2 CP contact block or for E2 LP LED holder; (2x) E2 CP01G2V1: Base fixing contact block E2 series, 1NC slow action; (1x) E2 CP10G2V1: Base fixing contact block E2 series, 1NO slow action.
Technical specifications
| Manufacturer part number | E2 AC-DXBC1000 |
|---|---|
| EAN | 8018851232251 |
| Minimum order quantity | 1 |
| Weight | 93 g |
| Customs tariff number | 85369095 |
| Product range | E2: complete unit (E2 AC) |
| ETIM class | EC002034 |
