Pizzato
SKU:CS MF202M0-P8
CS MF202M0-P8
CS MF202M0-P8
Impossibile caricare la disponibilità di ritiro

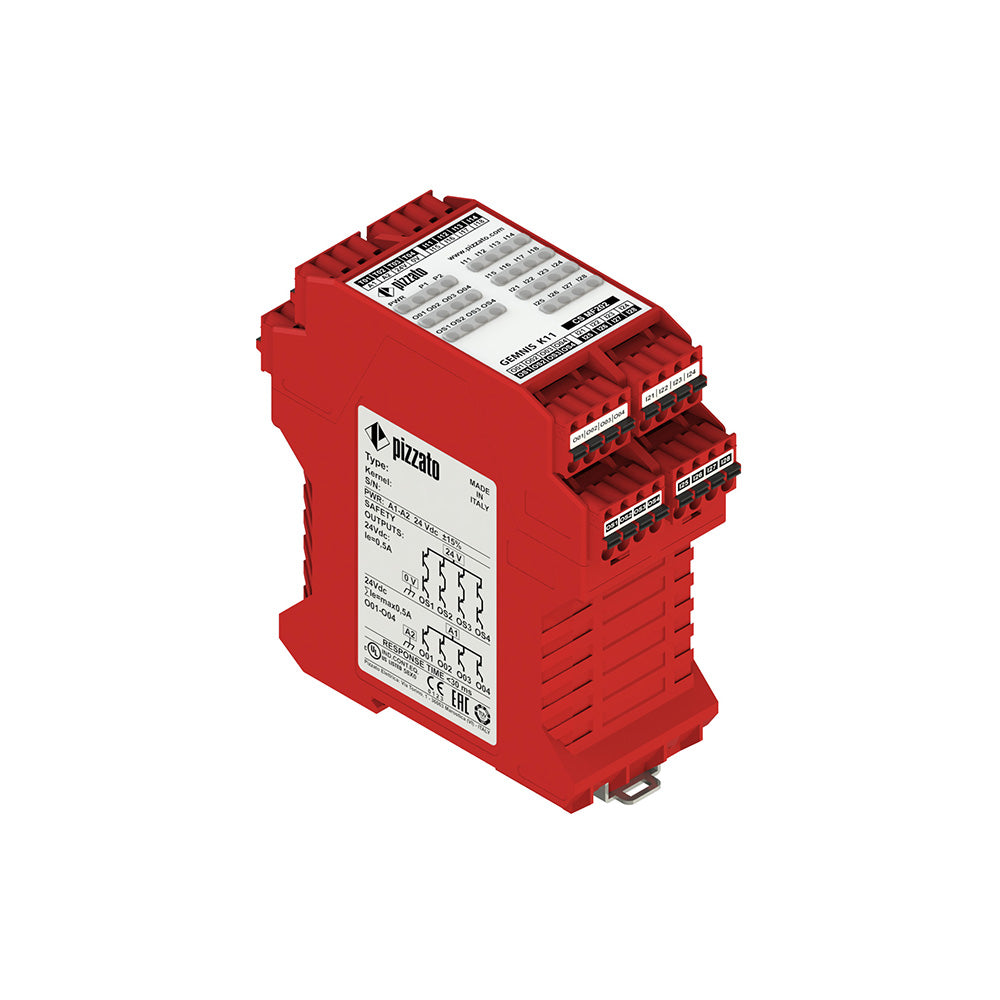

Pre-programmed multifunction module, up to SIL 3, PL e, Category 4 - Gemnis series, Functions: Monitoring of 4 guards in AND with switches provided with door lock, ?E? principle, 1 emergency stop, monitored start. Two instantaneous outputs and two outputs timed by means of a 4-setting selector, Supply: 24 Vdc, Outputs: Two instantaneous outputs and two outputs timed with a 4-setting selector, 4 PNP signalling outputs and OS4 output for door locking control.
Technical specifications
| Manufacturer part number | CS MF202M0-P8 |
|---|---|
| EAN | 8018851223310 |
| Minimum order quantity | 1 |
| Weight | 282 g |
| Customs tariff number | 85369095 |
| Product range | CS MP - CS MF Gemnis safety modules |
| ETIM class | EC001449 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
