Pizzato
SKU:BN AC4ZB89
BN AC4ZB89
BN AC4ZB89
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

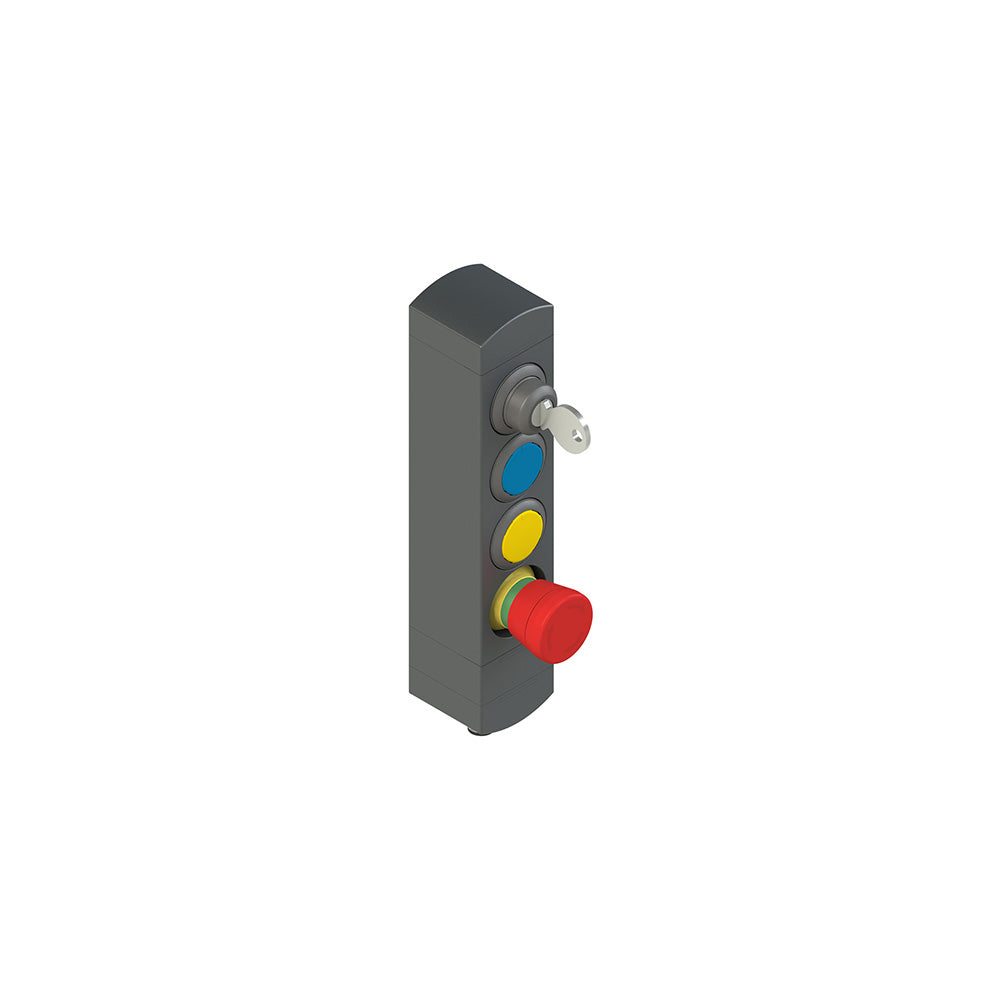

BN series control device unit, Number of devices: 4 devices, Position 1: Selector 1 maintained position, 1 spring-return position, 1NO, Position 2: 1 pushbutton blue 1NO, Position 3: 1 pushbutton yellow 1NO, Position 4: 1 red emergency stop button, turn to release, 2NC , Protection degree: IP65 according to EN 60529, Connection and output direction: M12 connector, 12-pole, at bottom.
Technical specifications
| Manufacturer part number | BN AC4ZB89 |
|---|---|
| EAN | 8018851640735 |
| Minimum order quantity | 1 |
| Weight | 350 g |
| Customs tariff number | 85369095 |
| Product range | Control device unit (BN) |
| ETIM class | EC000234 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
