Fandis
SKU:HTMS100X

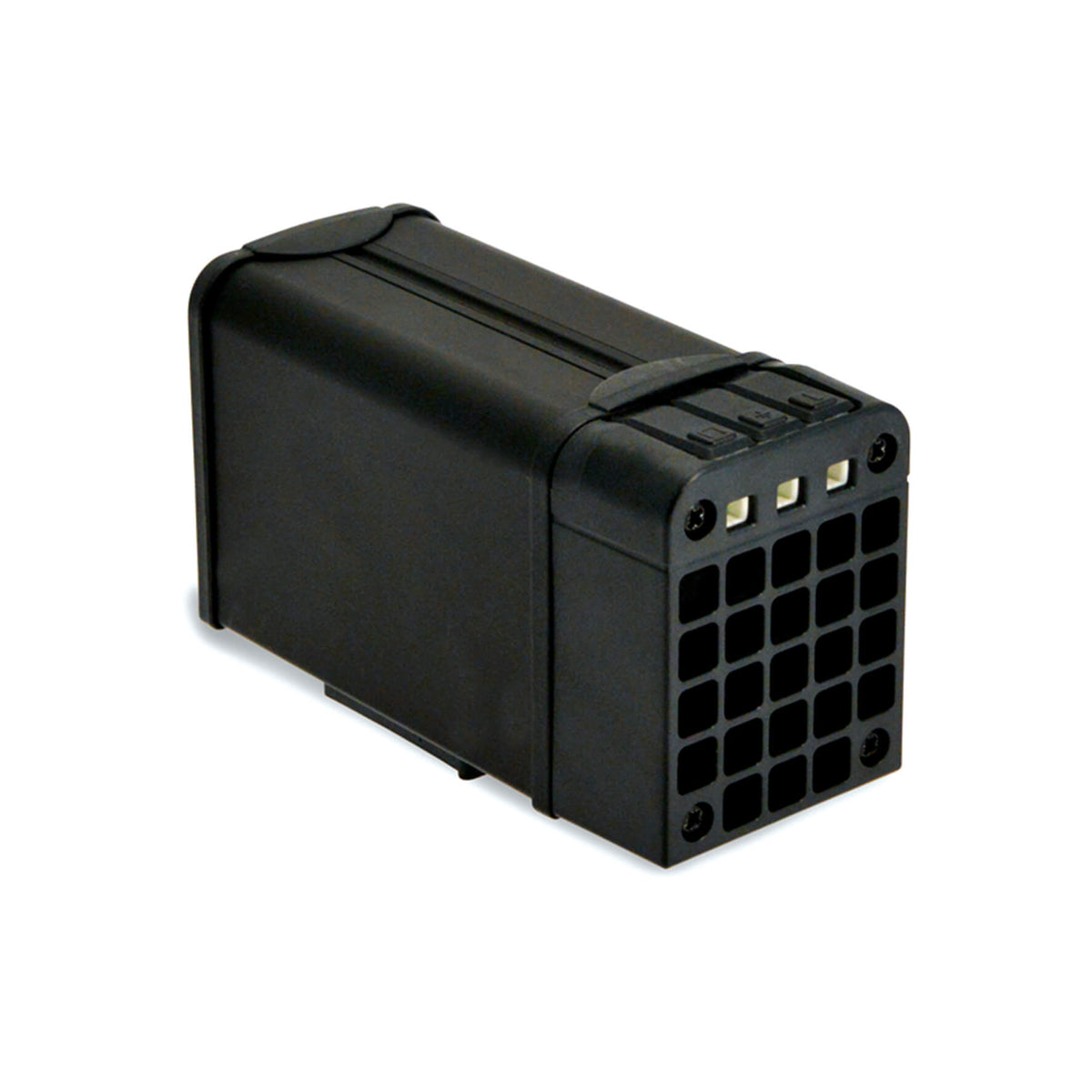

Fandis HTMS100X – HEATER 100W
Fandis HTMS100X – HEATER 100W
Price on request
Spese di spedizione calcolate al check-out.
Fandis PTC heaters are used for warming up the air inside enclosure, protecting electrical and electronic components from condensation and corrosion. These H series PTC heaters with pluggable terminal block are available in two versions: in metal or plastic, with low surface thermal conductivity to keep safe maintenance operations.
Technical specifications
| Manufacturer part number | HTMS100X |
|---|---|
| Approvals | CE; UKCA |
| Appliance Class | I |
| Frequency | 50/60 Hz |
| Max Current | 3.0 A |
| Operating Voltage | 99-264 V a.c. |
| Rated Voltage | 110-240 V a.c./d.c. |
| IP Protection Degree | IP20 |
| Operating Temperature | -30÷50 °C |
| Storage Temperature | -40÷70 °C |
| Casing Material | Black Anodised Aluminium |
| Electrical Connection | Terminal Block |
| Fixing System | DIN rail |
| Wires Section | 1-2.5 mm² |
| Heating Power | 100 W |
