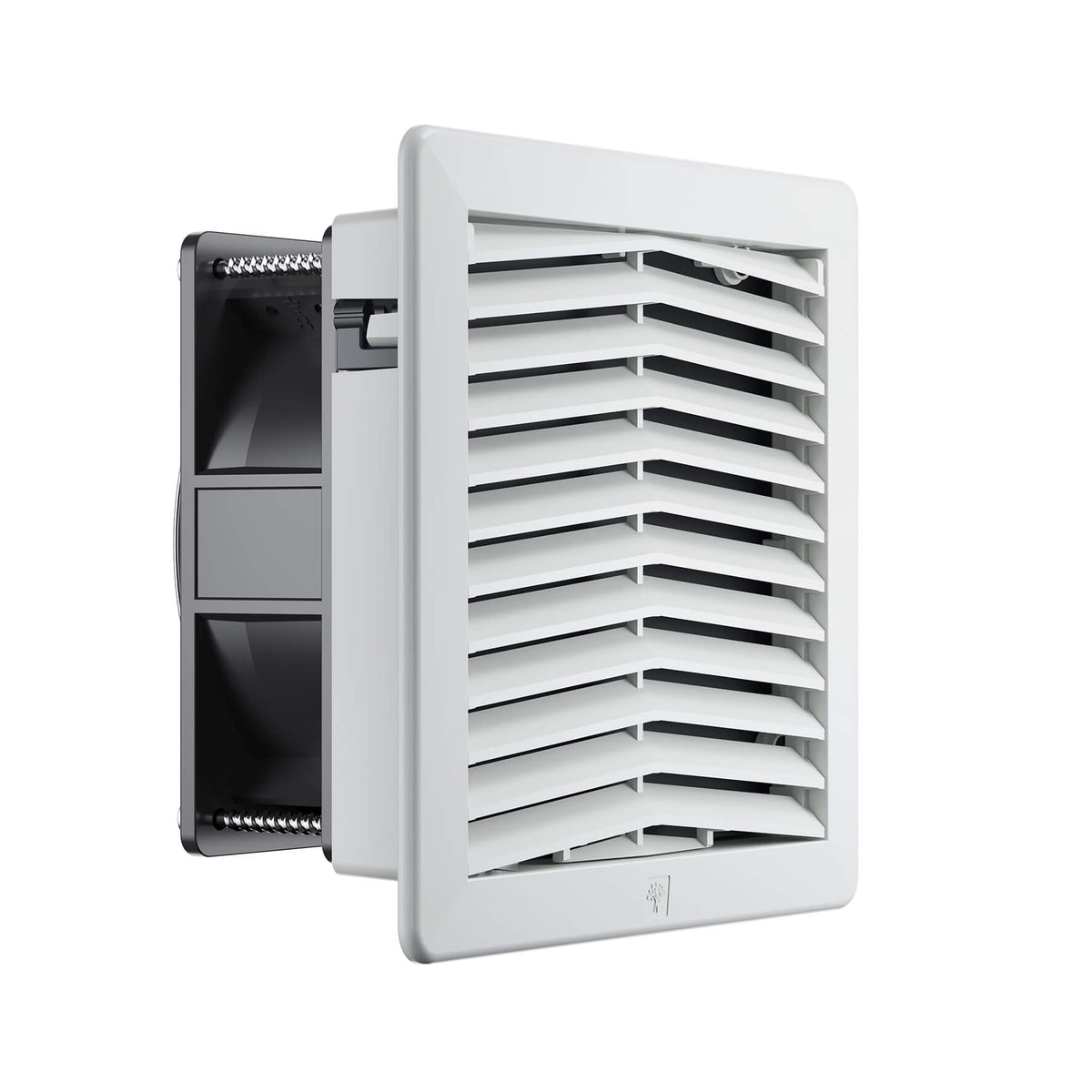

Fandis GF12KU230BER – FAN FILTER RAL 7035

Name: Fandis GF12KU230BER – FAN FILTER RAL 7035
Brand: Fandis
SKU: GF12KU230BER
Availability: InStock

Price on request

Esaurito

Spese di spedizione calcolate al check-out.

Request a price

GF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Characterized by a mounting system with jacks for thick wall application (up to 8mm extensible up to 16mm by cutting the jacks) in both plate and plastic enclosures, and a hinged opening for a filter media replacement in seconds.

Technical specifications

Manufacturer part number	GF12KU230BER
Approvals	CE; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Impedance Protected
Operating Voltage	216-244 V a.c.
Rated Current	0.1/0.09 A
Rated Power	17/16 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP54
Operating Temperature	-10÷55 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Reverse
Electrical Connection	Terminal Block
Fan Noise	43/48 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	40000 h at 40 °C
RAL Number	7035
Wires Section	24 AWG
Mounting Wall Thickness	1-8 mm
Airflow with Exhaust Filter	32/36 m³/h
Max Airflow	41/46 m³/h
Max Static Pressure	59/70 Pa
